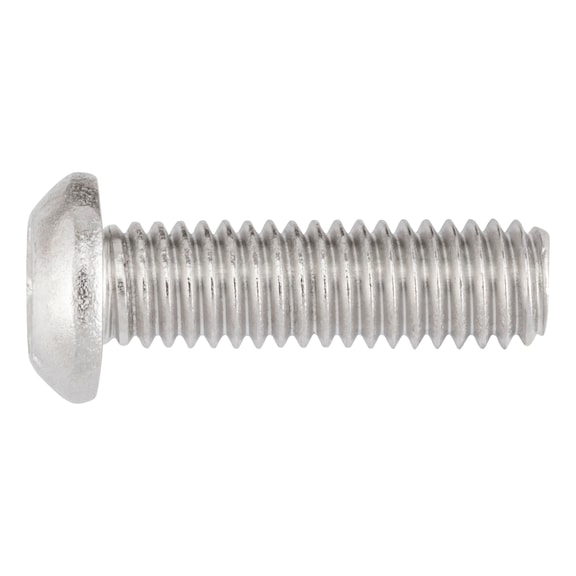

Stainless Steel Hex Socket Screw M4x12 | Corrosion Resistant | ISO 7380-1 Compliant | @Pack of 50 | by Wurth
Stainless Steel Hex Socket Screw M4x12 is designed for reliable fastening in various applications, featuring excellent corrosion resistance and compliance with ISO 7380-1 standards. Ideal for machinery, automotive, and construction industries, this screw ensures secure fastening with its button head and hexagon socket drive, making it perfect for general fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Hex Socket Screw M4x12 | Corrosion Resistant | ISO 7380-1 Compliant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 9901412
Alternatively Known As: Button head hex socket screw, ISO 7380-1 screw, Stainless steel hex socket screw M4x12

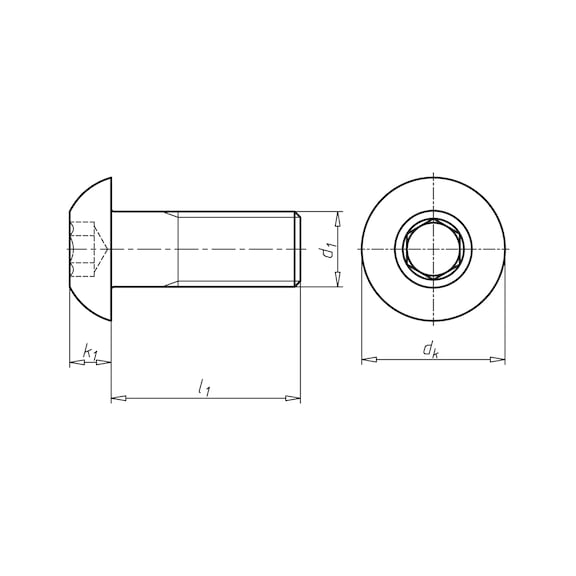

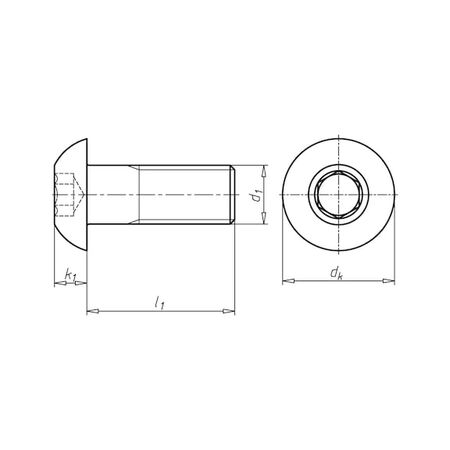

Technical Specifications
- Thread type x nominal diameter: M4
- Length: 12 mm
- Head diameter: 7.6 mm
- Head height: 2.2 mm
- Standards: ISO 7380-1
- Material: Stainless steel A4
- Property class: 070
- Surface finish: Plain
- Head type: Button head
- Drive type: Hexagon socket
- Internal drive size: HS2.5
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 12mm x 7.6mm
- Weight: 0.005 kg
Key Features
- Stainless steel A4 material offers excellent corrosion resistance
- Button head with hexagon socket drive for secure fastening
- Complies with ISO 7380-1 standard
- RoHS-compliant
- Limited load capacity due to head geometry as per DIN EN ISO 3506-1
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and load application.
Applications
- General fastening applications requiring corrosion-resistant screws
- Suitable for use in machinery, automotive, and construction industries
- Ideal for applications with limited load requirements due to head geometry
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from stainless steel A4 which is recyclable and corrosion resistant, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for corrosion-resistant fastening in machinery, automotive, and construction applications.
