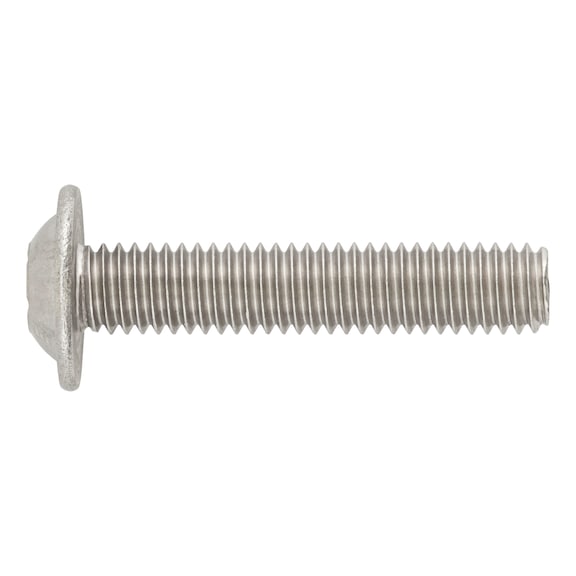

Stainless Steel Hexagon Socket Screw M3x6 | Button Head with Collar | ISO 7380-2 A2 070 | by Wurth
The Stainless Steel Hexagon Socket Screw M3x6 features a button head with collar design and hexagon socket drive for secure tightening. Ideal for mechanical assemblies and electronics, this corrosion-resistant fastener is RoHS-compliant, ensuring safety and durability in light load applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Hexagon Socket Screw M3x6 | Button Head with Collar | ISO 7380-2 A2 070 | by Wurth
Brand: Wurth
SKU: 980236
Alternatively Known As: Button head screw with collar, Hex socket screw M3x6, Stainless steel ISO 7380 screw
Technical Specifications
- Thread type x nominal diameter: M3
- Length: 6 mm
- Head diameter: 6.9 mm
- Head height: 1.65 mm
- Internal drive: HS2 (Hexagon socket)
- Standards: ISO 7380-2
- Material: Stainless steel A2
- Property class: 070
- Surface: Plain
- Head type: Button head with collar
- Drive type: Hexagon socket
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 6mm x 6.9mm
- Weight: 0.002 kg
Key Features
- Button head with collar design
- Hexagon socket drive for secure tightening
- Made from stainless steel A2 for corrosion resistance
- RoHS-compliant
- Limited load capacity due to head geometry as per DIN EN ISO 3506-1
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and load application.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Electronics and precision equipment
- General purpose fastening in light load applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material offers long service life reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Stainless Steel Screw ISO 7380-2 A2 070 M3x6 Hexagon Socket is available now for immediate purchase. Ideal for mechanical and electronic assembly applications requiring corrosion-resistant fasteners.
