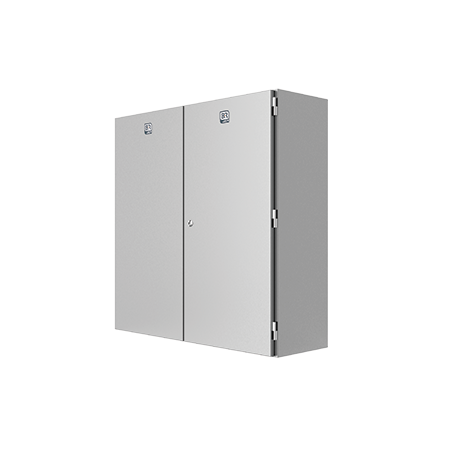

Stainless Steel Industrial Enclosure | 1800Hx1200Wx500D | IP55 | 316SS N4 Finish by B&R Enclosures

SKU: DD18125/S
$12,833.10 List price: $16,129.80
Free pick up (over 25 kg)
For delivery quote message
Stainless steel industrial enclosure with IP55 protection and 316SS N4 finish—ideal for industrial automation and process control. Built for durability, with fully welded construction and robust 3-point locking system.

Product Name/Title: Enclosure DD 1800Hx1200Wx500D IP55 316SS N4 Finish

Brand: B&R Enclosures

SKU: DD18125/S

Alternatively Known As: Stainless Steel Industrial Enclosure, Double Door Enclosure, IP55 Enclosure

Technical Specifications
  • Material: 316 stainless steel
  • Protection Rating: IP55
  • Construction: Fully welded
  • Thickness: 1.5mm
  • Locking System: 3-point locking
  • Door Opening: 180º
  • Dimensions (H x L x W): 1800mm x 500mm x 1200mm
  • Weight: 140.3 kg
Key Features
  • IP55 protection rating
  • Fully welded construction
  • Corrosion resistant 1.5mm thick 316 stainless steel
  • Unobstructed access to mounting pan
  • Robust 3-point locking system
  • Depth adjustable mounting pan
  • 180º opening doors
  • Gland plates fitted internally or externally
  • ASSDA approved N4 surface finish
Professional Installation Requirements
  • Professional installation is recommended to ensure compliance with safety standards.
Applications
  • Industrial automation
  • Process control
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Universal DD – Stainless Steel Enclosure is available now for immediate purchase, ideal for industrial applications.
