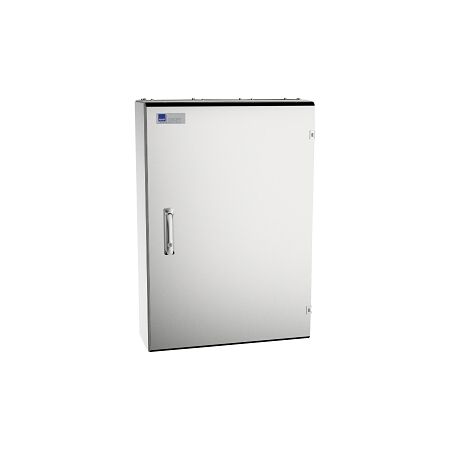

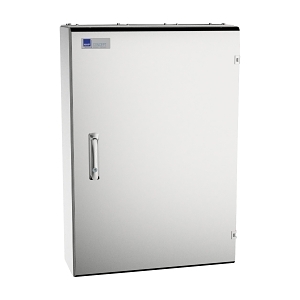

Stainless Steel Panelboard 96 Way | 250A | IP66 Rated | 1512mm by NHP

BRAND: NHP
SKU: CPR96SS
$11,181.70 List price: $14,847.80
Free pick up (over 25 kg)
For delivery quote message
Stainless steel panelboard with 96 outgoing ways and 250A rated current—ideal for industrial and commercial electrical distribution. Built for durability and protection, with IP66 rating against dust and water ingress.

Product Name/Title: NHP Concept Premier Panelboard 1512mm IP66 DIN-T 96 Way 250A No Main Switch Stainless Steel

Brand: NHP

SKU: CPR96SS

Alternatively Known As: NHP Panelboard, Stainless Steel Distribution Board, IP66 Panelboard

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 96
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Spare DIN Equipment Space Poles: 18
  • Material Housing: Stainless Steel
  • Material Thickness: 1.6 mm
  • Degree of Protection: IP66
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1512mm x 240mm x 600mm
  • Weight: 50 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Constructed from durable stainless steel for longevity.
  • 96 outgoing ways for extensive electrical distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for optimal safety.
Applications
  • Industrial: Factories, manufacturing plants
  • Commercial: Large buildings, shopping centers
  • General: Any location requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Premier Panelboard 1512mm IP66 DIN-T 96 Way 250A No Main Switch Stainless Steel is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

CPR96SS-AU-Concept-Premier-Panelboard-Datasheet.pdf (CPR96SS-AU-Concept-Premier-Panelboard-Datasheet.pdf, 1,388 Kb) [Download]
