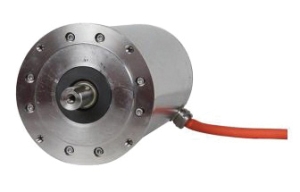

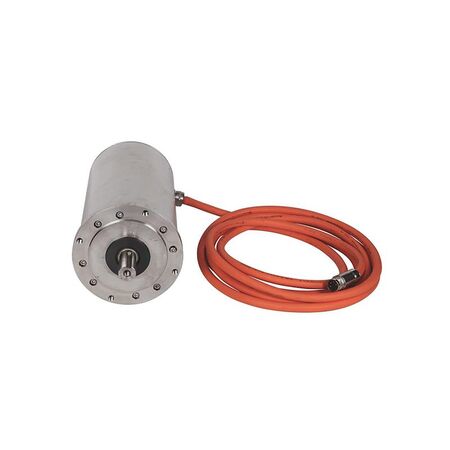

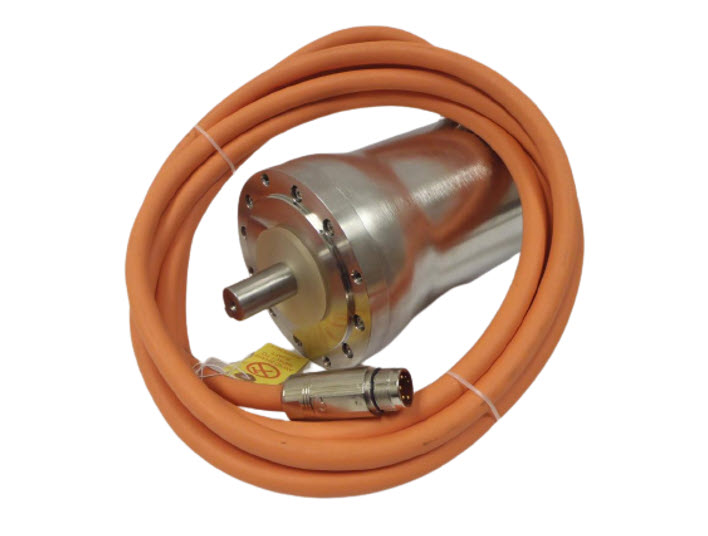

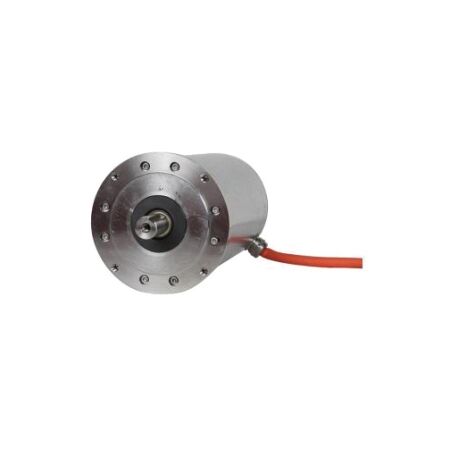

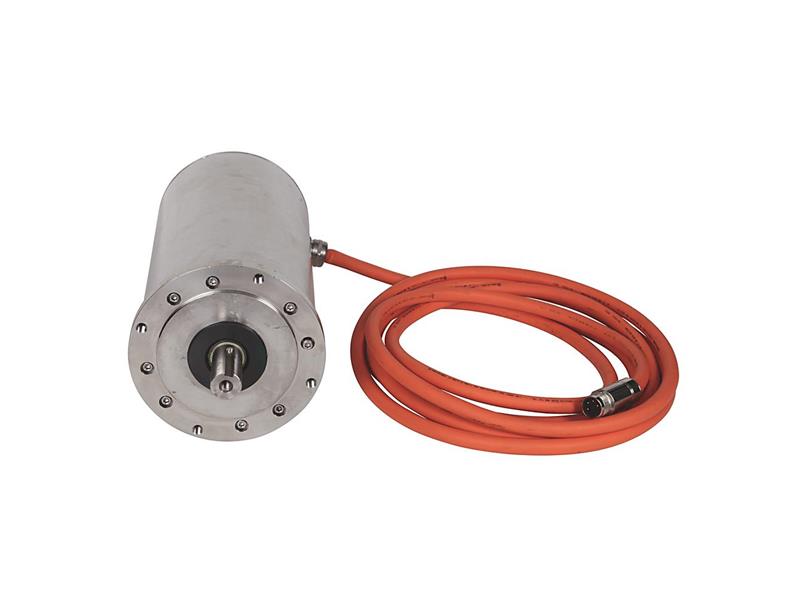

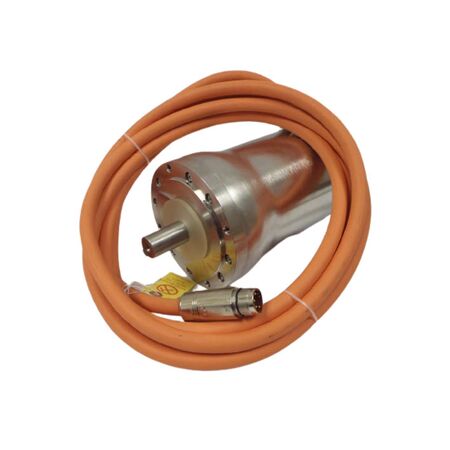

Product Name/Title: Allen-Bradley VPSB1304DPJ12DF Stainless Steel Servo Motor
Brand: Allen-Bradley
SKU: VPSB1304DPJ12DF
Alternatively Known As: Allen-Bradley Kinetix Servo Motor, VPSB Servo Motor, Stainless Steel Servo Motor 400V
Technical Specifications
- Voltage: 400V
- Frame Size: 130 mm
- Magnet Stack: 4
- Maximum Speed: 3000 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Connector: Single SpeedTec DIN
- Protection Rating: IP66/IP67/IP69K
- Shaft: IEC metric tapped with key and seal
- Brake: None
- Dimensions (H x L x W): 130mm x 200mm x 130mm
- Weight: 10 kg
Key Features
- Stainless steel construction for durability and corrosion resistance
- 400V operating voltage
- 130 mm frame size
- 4 magnet stack design
- 3000 RPM maximum speed
- 18-bit absolute multi-turn digital encoder with HIPERFACE DSL interface
- Shaft key and shaft seal included
- IP66/IP67/IP69K rated housing for high protection against dust and water
- Single SpeedTec DIN connector
- IEC metric tapped shaft
- No brake included
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical standards and optimal motor performance.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing machinery requiring high-speed servo motors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel housing enhances longevity reducing replacement frequency and waste
- High efficiency motor reduces energy consumption in industrial applications
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPSB1304DPJ12DF Servo Motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
