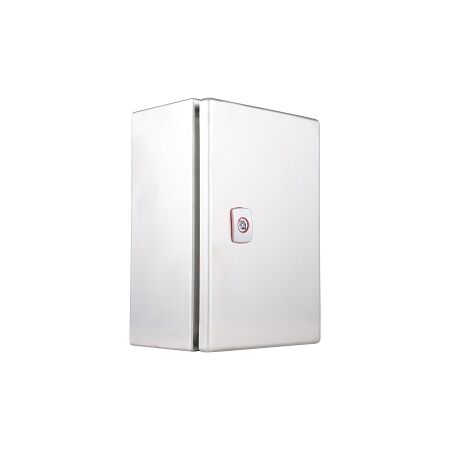

Stainless Steel Wall Mount Enclosure | IP66 Rated | 316 Grade | H400 x W600 x D210mm by NHP

BRAND: NHP
SKU: ASR0406021316
$1,635.50 List price: $2,171.70
+
Stainless steel wall mount enclosure with IP66 rating and 316 grade material—ideal for industrial and commercial environments. Built for durability and protection, with an adjustable mounting plate for versatile installation.

Product Name/Title: nVent HOFFMAN ASR/ADR Enclosure Wall Mount 316 Stainless Steel IP66 H400 x W600 x D210mm

Brand: NHP

SKU: ASR0406021316

Alternatively Known As: 316 Stainless Steel Enclosure, Wall Mount Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface finishing: Brushed/grinded
  • Enclosure load capacity: 163 kg
  • Door load capacity: 28.5 kg
  • Material thickness: 1.5 mm
  • Degree of protection: IP66, NEMA 4X
  • Type of lock: DIN 1/4 turn
  • Lock material: Chrome-plated zinc alloy
  • Impact strength: IK10
  • Number of doors: 1
  • Number of locks: 1
  • Dimensions (H x L x W): 400mm x 210mm x 600mm
  • Weight: 14.9 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rated for protection against dust and water ingress.
  • Adjustable mounting plate for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor and harsh environments.
  • Commercial: Ideal for electrical and electronic equipment protection.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN ASR/ADR Enclosure Wall Mount 316 Stainless Steel IP66 is available now for immediate purchase, ideal for industrial and commercial applications.

ASR0406021316-AU-Enclosure-Datasheet.pdf (ASR0406021316-AU-Enclosure-Datasheet.pdf, 828 Kb) [Download]
