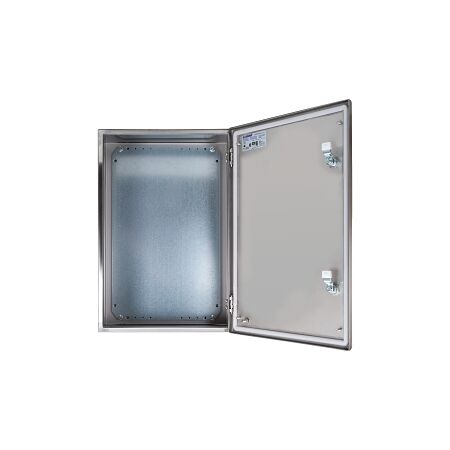

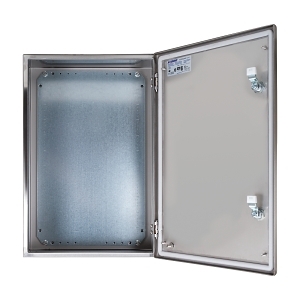

Stainless Steel Wall Mount Enclosure | IP66 Rated | 800x600x210mm | Adjustable Plate by NHP

BRAND: NHP
SKU: ASR0806021316
$2,650.40 List price: $3,519.30
Free pick up (over 25 kg)
For delivery quote message
Stainless steel wall mount enclosure with IP66 rating and adjustable mounting plate—ideal for industrial and commercial equipment protection. Built for durability in harsh environments, with compliance to AS/NZS 3000 standards.

Product Name/Title: nVent HOFFMAN ASR/ADR Enclosure Wall Mount 316 Stainless Steel IP66 H800 x W600 x D210mm

Brand: NHP

SKU: ASR0806021316

Alternatively Known As: 316 Stainless Steel Enclosure, Wall Mount Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface Finishing: Brushed/grinded
  • Enclosure Load Capacity: 163 kg
  • Door Load Capacity: 28.5 kg
  • Material Thickness: 1.5 mm
  • Degree of Protection: IP66, NEMA 4X
  • Type of Lock: DIN 1/4 turn
  • Number of Doors: 1
  • Number of Locks: 2
  • Impact Strength: IK10
  • Dimensions (H x L x W): 800mm x 210mm x 600mm
  • Weight: 27.1 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rated for protection against dust and water ingress.
  • Adjustable mounting plate for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor and harsh environments.
  • Commercial: Ideal for electrical and electronic equipment protection.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN ASR/ADR Enclosure Wall Mount 316 Stainless Steel IP66 is available now for immediate purchase, ideal for industrial and commercial applications.

ASR0806021316-AU-Enclosure-Datasheet.pdf (ASR0806021316-AU-Enclosure-Datasheet.pdf, 970 Kb) [Download]
