Stainless Steel Wall Mount Enclosure | IP66 Rated | 800x600x300mm | Brushed Finish by NHP

BRAND: NHP
SKU: ASR0806030316
$2,105.40 List price: $2,623.60
+
Stainless steel wall mount enclosure with IP66 rating and adjustable mounting plate—ideal for industrial and commercial use. Built for durability and protection, with a brushed finish and compliance with AS/NZS 3000 standards.

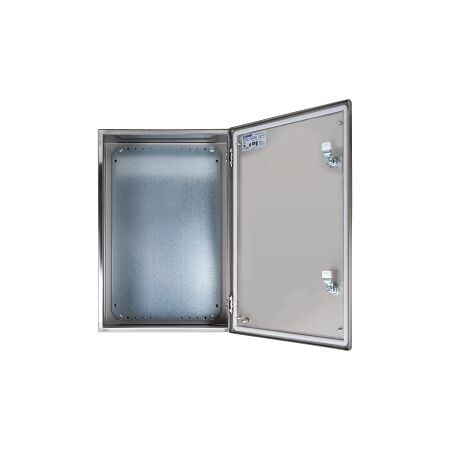

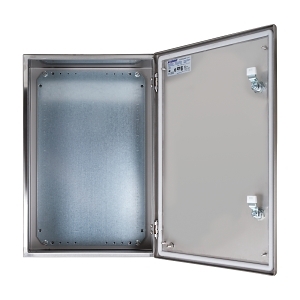

Product Name/Title: nVent HOFFMAN ASR/ADR Enclosure Wall Mount 316 Stainless Steel IP66 H800 x W600 x D300mm

Brand: NHP

SKU: ASR0806030316

Alternatively Known As: 316 Stainless Steel Enclosure, Wall Mount Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface Finishing: Brushed/grinded
  • Enclosure Load Capacity: 163 kg
  • Door Load Capacity: 28.5 kg
  • Material Thickness: 1.5 mm
  • Degree of Protection: IP66, NEMA 4X
  • Type of Lock: DIN 1/4 turn
  • Number of Doors: 1
  • Number of Locks: 2
  • Impact Strength: IK10
  • With Mounting Plate: Yes
  • Suitable for Outdoor Setup: Yes
  • Dimensions (H x L x W): 800mm x 300mm x 600mm
  • Weight: 29.15 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rated for protection against dust and water ingress.
  • Adjustable mounting plate for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor and harsh environments.
  • Commercial: Ideal for electrical and electronic equipment protection.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN ASR/ADR Enclosure Wall Mount 316 Stainless Steel IP66 is available now for immediate purchase, ideal for industrial and commercial applications.

ASR0806030316-AU-Enclosure-Datasheet.pdf (ASR0806030316-AU-Enclosure-Datasheet.pdf, 967 Kb) [Download]
