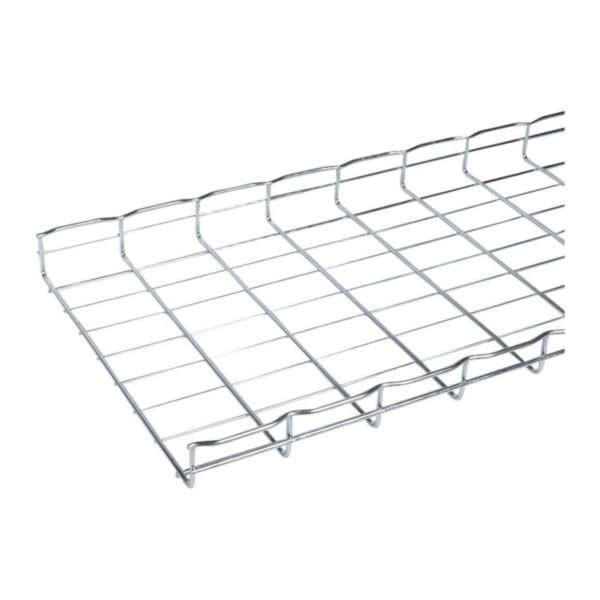

316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | @Each of 1 | by Cablofil
The 316L Stainless Steel Wire Cable Tray is designed for effective industrial cable management, featuring a robust U-shape profile and a pickled and passivated surface for enhanced corrosion resistance. Ideal for both indoor and outdoor applications, this tray ensures natural ventilation for greater cable efficiency, making it perfect for commercial building wiring and corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000204
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Surface Protection: Pickled and passivated
- Profile Shape: U-shape
- Width: 400 mm
- Height: 54 mm
- Length: 3000 mm
- Usable Cross Section: 20613 mm²
- Weight: 2.295734 kg/m
- Operating Temperature: -20 to 120 °C
- Storage Temperature: -20 to 120 °C
- Model: Without connector
- Integrated Partition: None
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 54mm x 3000mm x 400mm
- Weight: 6.9 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated surface for corrosion resistance
- Made from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial building wiring
- Outdoor and indoor cable routing
- Corrosive environments requiring stainless steel
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion resistance extends product lifespan reducing waste
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 400mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
