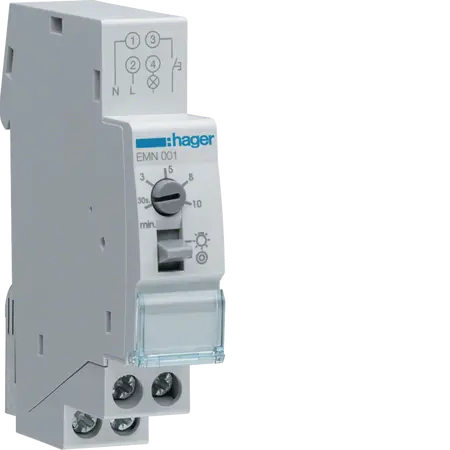

Staircase Time Lag Switch | 230V 16A | Adjustable Delay | DIN Rail by Hager

BRAND: :hager

SKU: EMN001

$156.90 List price: $200.70

+ −

30 Days Return Delivery Options

Staircase time lag switch with 230V operational voltage and 16A current—ideal for residential and commercial lighting automation. Built for energy efficiency, with adjustable delay from 30 seconds to 10 minutes and DIN rail mounting.

Description
Attachments

Product Name/Title: Stair case time lag switch

Brand: Hager

SKU: EMN001

Alternatively Known As: Stair Case Timer Switch

Technical Specifications

Rated operational voltage: 230 - 230 V
Frequency: 50 - 60 Hz
Rated current: 16 A
Number of modules: 1
Type of connection: Screw terminal, Wire connection
Mounting on: DIN rail
Max. load fluorescent lamp parallel compensated: 1000 VA
Max. load fluorescent lamp: 3600 VA
Operating temperature: -10 - 55 °C
Cross-section flexible conductor: 1 - 6 mm²
Cross-section rigid conductor: 1.5 - 10 mm²
Time delay: 30 S - 10 Min
Width: 17.50 mm
Depth: 64 mm
Dimensions (H x L x W): 90mm x 64mm x 17.50mm
Weight: 0.2 kg

Key Features

Suitable for DIN rail mounting
Rated operational voltage: 230 V
Rated current: 16 A
Adjustable time delay: 30 seconds to 10 minutes

Professional Installation Requirements

A qualified electrician is recommended for installation to ensure safety and compliance with standards.

Applications

Residential buildings requiring timed lighting solutions
Commercial spaces needing controlled lighting automation

Standards & Compliance

Complies with relevant electrical safety standards for time lag switches

Environmental Benefits

Reduces unnecessary power consumption

Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Hager EMN001 Stair Case Time Lag Switch is available for immediate purchase. Ideal for energy-efficient lighting control in various settings.

EMN001 (EMN001, 119 Kb) [Download]

reach_declaration_EMN0017.pdf (reach_declaration_EMN0017.pdf, 103 Kb) [Download]

rohs_declaration_EMN0017.pdf (rohs_declaration_EMN0017.pdf, 104 Kb) [Download]

DECLARATION_21_2221_11_21.pdf (DECLARATION_21_2221_11_21.pdf, 127 Kb) [Download]
