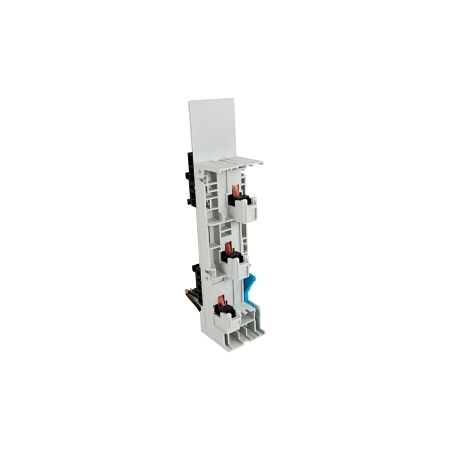

Standard Busbar Module 260 x 54mm | 25A Rated | DIN Rail Mount by NHP
Standard busbar module with 25A rated current and DIN rail mounting—ideal for motor control systems and electrical distribution. Built for industrial and commercial use, ensuring reliable performance and compliance with AS/NZS 3000 standards.
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 141A 32449 Standard Busbar Module 260 x 54mm 25A
Brand: NHP
SKU: 141AGM54RS25
Alternatively Known As: Busbar Adapter, Motor Control Busbar, Electrical Busbar Module
- Rated Current: 25 A
- Type of Electric Connection: 3 conductors AWG 10
- Mounting Rail Armament: 1 mounting rail
- Version as Busbar Adapter: Yes
- Width of the Adapter: 54 mm
- Rail Width: 35 mm
- Busbar Distance: 60 mm
- Min Busbar Thickness: 5 mm
- Max Busbar Thickness: 10 mm
- Dimensions (H x L x W): 260mm x 60mm x 54mm
- Weight: 1.5 kg
- Rated current of 25A for reliable performance.
- Compatible with DIN rail top hat rail mounting.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor control systems and electrical distribution
- Commercial: Suitable for various electrical installations
- Complies with AS/NZS 3000 for electrical installation standards.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 141A 32449 Standard Busbar Module is available now for immediate purchase, ideal for motor control systems and electrical installations.
