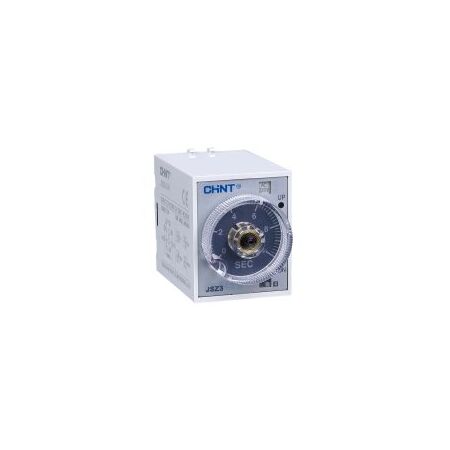

Star Delta Timer 60s 220V AC JSZ3Y Chint

BRAND: CABAC
SKU: 294675
$149.50 List price: $199.40
+ −
30 Days Return Electricians Unlock Trade Access
Chint JSZ3Y star delta timer features 0.5-6s or 60s selectable range, 220V AC coil, and DIN rail or panel mounting. Ideal for star-delta motor starters.

Alternatively Known As: Star–Delta Timer Relay, Y/D Time Relay, Motor Starter Changeover Timer

Technical Specifications
  • Function: Star–delta starting delay relay
  • Control Supply: 220 V AC, 50/60 Hz
  • Timing Range: Selectable 0.5–6 s or up to 60 s
  • Contact Configuration: 1 changeover contact, 1 NO + 1 NC
  • Contact Rating: AC-15 240 V / 0.75 A; 415 V / 0.47 A
  • Thermal Current Ith: 5 A
  • Delay Accuracy: ≤10%
  • Electrical Life: Minimum 100,000 operations
  • Mechanical Life: Minimum 1,000,000 operations
  • Operating Temperature: –5 °C to +40 °C
  • Adjustment: Front potentiometer
  • Mounting: DIN rail, panel or equipment type
  • Dimensions (H x L x W): 54.5mm x 84mm x 41mm
  • Weight: 0.16 kg
Key Features
  • Automates the transition from star to delta operation in three-phase motor starters
  • Selectable short or extended timing range for different motor starting requirements
  • Single changeover contact for control of star and delta contactors
  • DIN-rail, panel and equipment mounting options
  • Suitable for industrial motor control panels and HVAC compressor circuits
  • Designed for integration with contactors and thermal overload relays
Professional Installation Requirements
  • Installation and wiring should be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements. Isolate the supply before installation and verify compatibility with the motor starter control circuit.
Applications
  • Star–delta motor starter control
  • Three-phase motor starting systems
  • Industrial machinery control panels
  • HVAC compressor motor control circuits
  • Pump, fan and conveyor motor starters
Standards & Compliance
  • Applicable control circuit device standard: AS/NZS IEC 60947.5.1:2015
Environmental Benefits
  • Timed star–delta starting can reduce motor inrush current and mechanical stress during startup.
  • Long electrical and mechanical service life can reduce replacement frequency and associated material waste.
Warranty Information

CHINT general warranty policy covers other low-voltage apparatus against defects in materials and workmanship for 27 months from the date of manufacture, subject to authorised sales channels and applicable contract terms.
