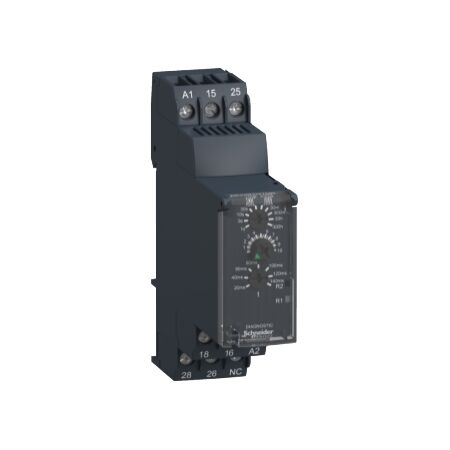

Star Delta Timer Relay | 0.05s to 300h Timing Range | 24–240V AC/DC | 2 Changeover Outputs | @Pack of 1 | by Clipsal
The Star Delta Timer Relay is designed for efficient motor control, featuring a timing range from 0.05 seconds to 300 hours and a universal supply voltage of 24–240V AC/DC. With two changeover relay outputs and LED status indicators, it's perfect for industrial automation, HVAC systems, and conveyor systems, ensuring reduced energy consumption and extended equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Star Delta Timer Relay | 0.05s to 300h Timing Range | 24–240V AC/DC | 2 Changeover Outputs | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R2QTMR
Alternatively Known As: Star Delta Timer, Star Delta Timing Relay, Motor Starter Timer Relay, Star-Delta Timer Relay, SCHRE22R2QTMR
Technical Specifications
- Timing range: 0.05 seconds to 300 hours
- Supply voltage: 24–240V AC/DC
- Relay outputs: 2 changeover (2C/O)
- Mounting: DIN rail
- LED indicators: Power, timing, relay status
- Operating temperature: -20°C to +60°C
- Contact rating: 8A/250V AC
- IP20 protection (housing)
- Dimensions (H x L x W): 90mm x 100mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Star-Delta timing relay for reduced motor starting current
- Wide timing range: 0.05 seconds to 300 hours
- Universal supply voltage: 24–240V AC/DC
- 2 changeover (2C/O) relay outputs
- DIN rail mountable for easy installation
- LED status indicators for operation and timing
- Compact design for control panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Motor control panels
- Industrial automation
- Pumps and compressors
- HVAC systems
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor starting current
- Minimizes mechanical stress on motors, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Star Delta Timer Relay SCHRE22R2QTMR is available for immediate purchase. Ideal for industrial motor control and automation applications.
