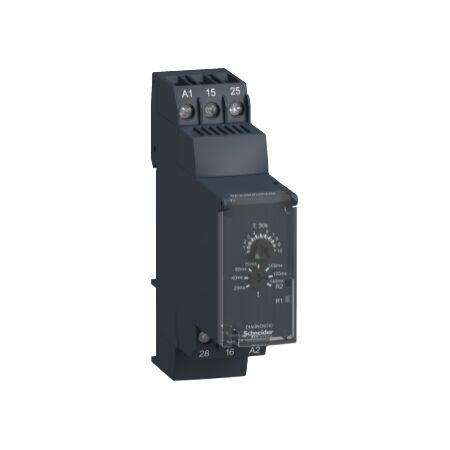

Star Delta Timer Relay | 0.3–30 Seconds Timing Range | 24–240V AC/DC | DIN Rail Mount | @Pack of 1 | by Clipsal
The Star Delta Timer Relay is designed for efficient motor control, featuring an adjustable timing range of 0.3 to 30 seconds and a wide supply voltage of 24–240V AC/DC. Ideal for industrial automation and HVAC systems, this relay minimizes inrush current during startup, extending motor lifespan and reducing energy consumption. With LED status indicators and DIN rail mounting, installation is straightforward and reliable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Star Delta Timer Relay | 0.3–30 Seconds Timing Range | 24–240V AC/DC | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R2QEMR
Alternatively Known As: Star Delta Timer, Star-Delta Timing Relay, Motor Starter Timer Relay, Star Delta Time Delay Relay
Technical Specifications
- Timing function: Star-Delta
- Timing range: 0.3–30 seconds
- Supply voltage: 24–240V AC/DC
- Contacts: 2 changeover (2C/O)
- Mounting: DIN rail
- Status indication: LED
- Operating temperature: -20°C to +60°C
- Rated insulation voltage: 250V
- Contact rating: 8A/250V AC
- Dimensions (H x L x W): 85mm x 100mm x 22.5mm
- Weight: 0.12 kg
Key Features
- Star-Delta timing relay for reduced motor starting current
- Adjustable timing range: 0.3 to 30 seconds
- Wide supply voltage: 24–240V AC/DC
- 2 changeover (2C/O) contacts for flexible control
- DIN rail mounting for easy installation
- LED status indicators for operation and timing
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control panels
- Industrial automation
- Pumps and compressors
- HVAC systems
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by minimizing inrush current during motor startup
- Extends motor lifespan, reducing waste and maintenance frequency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Star Delta Timer Relay SCHRE22R2QEMR is available for immediate purchase. Ideal for industrial motor control and automation applications.
