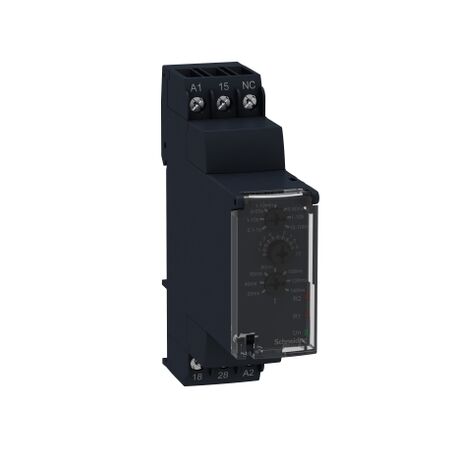

Star-Delta Timing Relay | 24VDC to 240VAC | DIN Rail Mountable | Precise Timing Adjustment | @Pack of 1 | by Clipsal
The Star-Delta Timing Relay is designed for efficient motor control, featuring a wide supply voltage range of 24VDC to 240VAC and a single changeover contact output. Perfect for industrial applications like pumps and HVAC systems, this relay minimizes electrical stress on motors, extending their lifespan while ensuring reduced energy consumption during startup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Star-Delta Timing Relay | 24VDC to 240VAC | DIN Rail Mountable | Precise Timing Adjustment | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R1QMU
Alternatively Known As: Star-delta timer, star-delta timing relay, motor starter timer, SCHRE22R1QMU relay, Clipsal star-delta relay
Technical Specifications
- Supply voltage: 24VDC or 24–240VAC
- Output: 1 changeover (C/O) contact
- Mounting: DIN rail
- Timing function: Star-delta transition
- Contact rating: 8A/250VAC
- Operating temperature: -20°C to +60°C
- Housing: Flame-retardant plastic
- Dimensions (H x L x W): 78mm x 100mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Star-delta timing relay for reduced voltage motor starting
- Wide supply voltage range: 24VDC or 24–240VAC
- 1 changeover (C/O) contact output
- DIN rail mountable for easy installation
- Precise timing adjustment for star and delta transition
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial motor control panels
- Pumps and compressors
- HVAC systems
- Machinery requiring reduced starting current
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption during motor startup
- Minimizes electrical stress on motors, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHRE22R1QMU Star-Delta Timing Relay is available for immediate purchase. Ideal for industrial motor control and automation applications.
