Static Var Generator Power Module 50kVAr | 3 Phase 3 Wire | Rear Connect by NHP
Static Var Generator power module with 50kVAr capacity and 3 phase 3 wire configuration—ideal for industrial and commercial power factor correction. Built for fast response with Modbus communication and rear connect design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

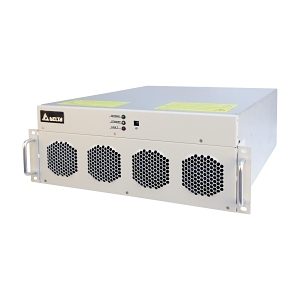

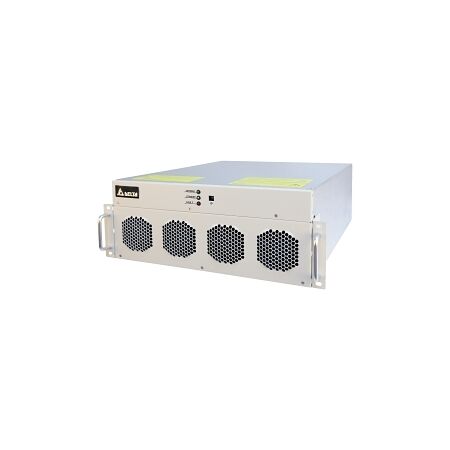

Product Name/Title: Delta Static Var Generator (SVG) Power Module 50kVAr 3 Phase 3 Wire Rear Connect Fixed Type
Brand: NHP
SKU: PQSVGM50XG3FRCX1A
Alternatively Known As: SVG Power Module, Static Var Generator, Power Factor Correction Module
Technical Specifications
- Rated Operating Voltage: 308-480 V
- Rated Frequency: 50-60 Hz
- Three Wire Model: Yes
- Four Wire Model: No
- Communications Protocol: Modbus-RTU, Modbus-TCP/IP
- Response Time: 20 s
- Instant Response Time: 0.1 s
- Min Mean Time Before Failure (MTBF): 100000 h
- Operating Temperature: -10-50 °C
- Thermal Loss: 3 %
- Dimensions (H x L x W): 174mm x 440mm x 600mm
- Weight: 30 kg
Key Features
- 50 kvar total rated capacity per module.
- Supports Modbus-RTU and Modbus-TCP/IP communications.
- Fast response time of 0.1 seconds.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Large buildings, data centers
- General: Power factor correction in electrical systems
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Improves energy efficiency and reduces electricity costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Delta Static Var Generator (SVG) Power Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring power factor correction.
Non-Returnable & Non-Cancellable
