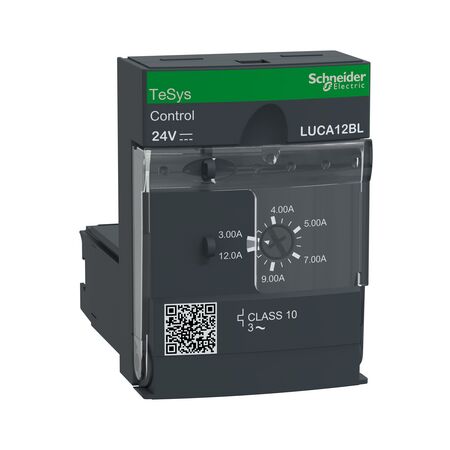

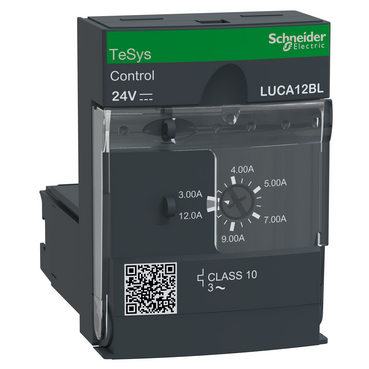

Std Control 3-12A 24VDC Relay | Compact Design | Reliable Switching | by Clipsal
The Std Control 3-12A 24VDC relay is designed for efficient control in industrial automation and building management systems. With a current range of 3-12A and a compact design, it ensures reliable switching performance for various electrical control applications. Ideal for licensed electricians, this relay meets Australian safety standards and is perfect for HVAC and lighting control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Std Control 3-12A 24VDC Relay | Compact Design | Reliable Switching | by Clipsal
Brand: Clipsal
SKU: SCHLUCA12BL
Alternatively Known As: Clipsal 24VDC Control Relay, SCHLUCA12BL, 3-12A DC Relay, Clipsal Standard Control Relay, 24VDC Automation Relay
Technical Specifications
- Control Voltage: 24VDC
- Current Range: 3-12A
- Type: Standard control relay
- Mounting: DIN rail or panel mount
- Contact Configuration: SPDT/DPDT (varies by model)
- Operating Temperature: -20°C to +60°C
- Insulation Resistance: >100MΩ at 500VDC
- Dielectric Strength: 1500VAC, 50/60Hz for 1 min
- Dimensions (H x L x W): 80mm x 60mm x 25mm
- Weight: 0.25 kg
Key Features
- Standard control relay for 24VDC applications
- Current range: 3-12A
- Compact and robust design
- Reliable switching performance
- Suitable for integration in control panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation panels
- Building management systems
- HVAC control
- Lighting control circuits
- General electrical control applications requiring 24VDC operation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Std Control 3-12A 24VDC (SCHLUCA12BL) is available for immediate purchase. Ideal for industrial automation, building management, and electrical control systems.
