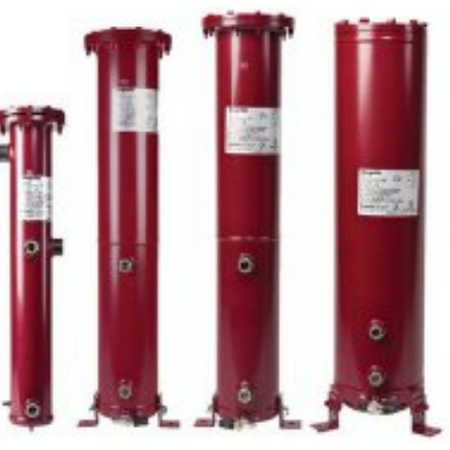

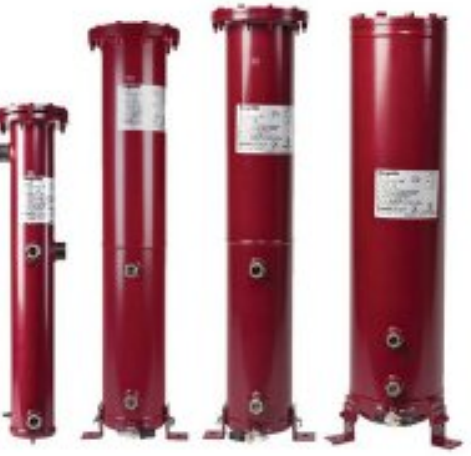

Std Efficiency Pressure Vessel for 930/R | Temprite Technology | Low Flow Efficiency | by Aspen Pumps
The Std Efficiency Pressure Vessel for 930/R incorporates advanced Temprite coalescent oil separator technology, ensuring optimal performance even at low flow rates down to 20% of maximum flow. Designed for OEM applications and industrial HVAC systems, this vessel is manufactured to meet Australian standards, making it ideal for environments where system cleanliness is critical.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Std Efficiency Pressure Vessel for 930/R | Temprite Technology | Low Flow Efficiency | by Aspen Pumps
Brand: Aspen Pumps
SKU: 308-62085000
Alternatively Known As: SKY Pressure Vessel, Coalescent Oil Separator Vessel, Temprite Pressure Vessel
Technical Specifications
- Incorporates Temprite coalescent oil separator technology
- Maintains efficiency at low flow rates (down to 20% of max flow)
- Manufactured in accordance with Australian standards
- Registered with Worksafe where applicable
- Dimensions (H x L x W): 600mm x 300mm x 300mm
- Weight: 5 kg
Key Features
- Temprite Technology for industry-standard energy-efficient performance
- Coalescent oil separators maintain efficiency down to 20% of maximum flow
- High-efficiency coalescing oil separators improve heat transfer and reduce kW consumption
- Ideal for applications where system cleanliness is critical
Professional Installation Requirements
- Installation by qualified HVAC or refrigeration professionals is recommended to ensure compliance with safety and performance standards.
Applications
- OEM applications requiring system cleanliness
- Industrial and commercial HVAC systems
- Pressure vessel applications in refrigeration and cooling systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions
- Registered with Worksafe for safety compliance
Environmental Benefits
- Energy-efficient design reduces power consumption and operational costs
- Improved heat transfer efficiency lowers carbon footprint of HVAC systems
Warranty Information
Warranty terms as per Aspen Pumps standard product warranty policy.
Available Now
The Aspen Pumps SKY Pressure Vessel Std Efficiency to Suit 930/R is available for immediate purchase, ideal for OEM and industrial refrigeration applications.
