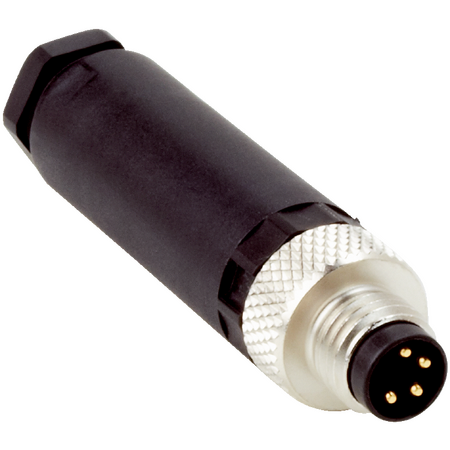

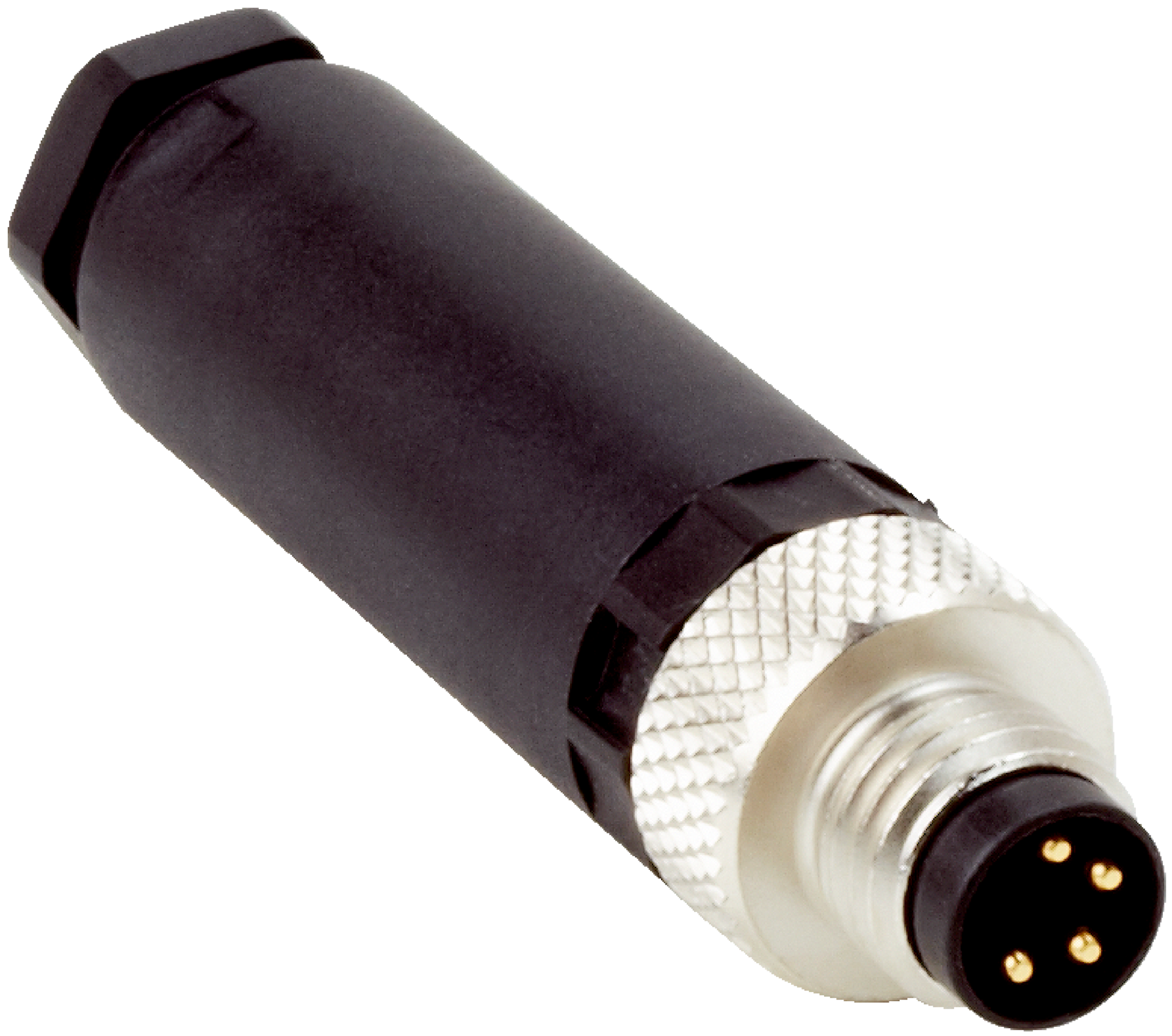

STE-0804-G | Connectors and cables
The SICK STE-0804-G is a robust M8 4-pin male connector cable designed for industrial automation applications, featuring IP67 protection and reliable screw-type terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: STE-0804-G | Connectors and cables
Brand: SICK
SKU: 6037323
Alternatively Known As: M8 4-pin male connector cable, Industrial sensor connector, M8 connector cable
Technical Specifications
- Connection type head A: Male connector, M8, 4-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PBT/PA
- Connector color: Black
- Locking nut material: CuZn
- Tightening torque: 0.4 Nm
- Shielding: Unshielded
- Permitted cross-section: 0.14 mm² to 0.5 mm²
- Reference voltage: ≤ 30 V
- Current loading: ≤ 4 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M8, 4-pin, straight, A-coded
- Screw-type terminals for secure connection
- Connector material: PBT/PA with black color
- Locking nut made of CuZn for durability
- Tightening torque of 0.4 Nm
- Unshielded design
- Permitted cross-section from 0.14 mm² to 0.5 mm²
- Current loading up to 4 A
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- IP67 rating ensures protection against environmental factors, extending product life.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK STE-0804-G M8 4-pin male connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
