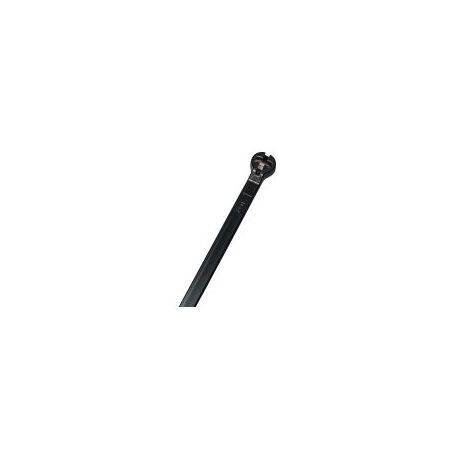

Steel Pawl Cable Tie PA66 140x3.6mm UV Black Pack of 100 Cabac
Cabac steel pawl cable tie 140x3.6mm, PA66 body with 316 stainless pawl, UV stabilised black, pack of 100. Ideal for switchboards and vibration-prone machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Metal Pawl Cable Tie, Stainless Steel Pawl Cable Tie, PA66 Cable Tie, UV-Stabilised Nylon Cable Tie
Technical Specifications
- Material: Halogen-free Polyamide 6.6 (PA66) body with 316 stainless-steel pawl
- Length: 140 mm
- Width: 3.6 mm
- Thickness: 1.2 mm
- Maximum Bundle Diameter: 33 mm
- Loop Tensile Strength: 18.2 kg
- Colour: UV-stabilised black
- Installation Temperature: -20°C to +85°C
- Working Temperature: -60°C to +85°C
- Short-Term Temperature: Up to +110°C
- Flammability Rating: UL 94 V-2; Plenum Rated AH-2
- Chemical Resistance: Oils, greases, bases and chlorinated solvents
- Pack Quantity: 100
- Locking Mechanism: Two-piece metal pawl design
- Dimensions (H x L x W): 11mm x 140mm x 13mm
- Weight: 0.11 kg
Key Features
- 316 stainless-steel pawl provides secure locking under vibration, movement and higher mechanical loads
- UV-stabilised black PA66 body for indoor and outdoor applications
- Suitable for switchboards, control panels, machinery and transport installations
- Rounded edges help minimise damage to cable insulation during installation
- Halogen-free construction with low-smoke characteristics
- Resistant to oils, greases, bases and chlorinated solvents
- Suitable for cable bundles up to 33 mm diameter
- Compatible with suitable cable-tie tensioning tools for controlled installation
Applications
- Switchboards and control panels
- Vibration-prone machinery
- Industrial electrical installations
- Transport and mobile equipment wiring
- Residential and commercial cable bundling
- Outdoor cable management where UV-stabilised ties are required
Environmental Benefits
- Halogen-free construction reduces the potential release of corrosive halogenated gases during fire conditions
- Complies with applicable RoHS and REACH substance restrictions
- PA66 and 316 stainless steel components can be recovered through appropriate material recycling streams
- Durable UV-stabilised construction can extend service life and reduce replacement waste
Warranty Information
Cabac publishes warranty coverage subject to product-specific terms, correct installation and intended use. Its published warranty policy includes a lifetime-of-product warranty for qualifying products; misuse, neglect and incorrect installation are excluded. Confirm applicability to this cable-tie model before making a warranty claim.
Available Now
Available through CABAC and authorised Australian electrical distributors.
