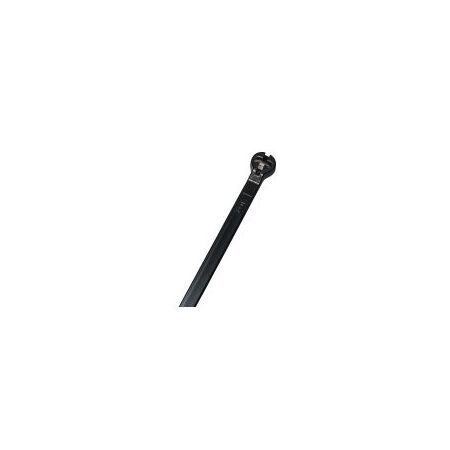

Steel Pawl Cable Tie PA66 200x4.8mm UV Black Pack of 100 Cabac

BRAND: CABAC
SKU: CT200BK/100SP
$0.10 List price: $0.20
+ −
30 Days Return Electricians Unlock Trade Access
Cabac steel pawl cable tie 200x4.8mm, PA66 body with 316 stainless pawl, UV stabilised black, pack of 100. Ideal for switchboards and vibration-prone machinery.

Alternatively Known As: PA66 cable tie, stainless steel pawl cable tie, UV-stabilised cable tie, high-strength cable tie, zip tie

Technical Specifications
  • Product Code: CT200BK/100SP
  • Material: Halogen-free PA66 body with 316 stainless steel pawl
  • Colour: UV-stabilised black
  • Length: 200 mm
  • Width: 4.8 mm
  • Loop Tensile Strength: 22.6 kg
  • Maximum Bundle Diameter: 49.5 mm
  • Installation Temperature: -20°C to +85°C
  • Working Temperature: -60°C to +85°C
  • Short-Term Temperature: Up to +110°C
  • Flammability Rating: UL 94 V-2; plenum rated AH-2
  • Chemical Resistance: Oils, greases, bases and chlorinated solvents
  • Pack Quantity: 100
  • Compliance: UL 62275, EN 62275:2019, RoHS, REACH and TSCA
  • Dimensions (H x L x W): 1.3mm x 200mm x 4.8mm
  • Weight: 0.22 kg
Key Features
  • 316 stainless steel pawl provides secure locking under vibration and movement
  • UV-stabilised black PA66 body for indoor and outdoor applications
  • High tensile strength suitable for higher mechanical loads
  • Rounded edges help minimise cable damage during installation
  • Halogen-free construction
  • Suitable for use with cable-tie tensioning tools
  • Permanent two-piece locking design
Applications
  • Switchboards and control panels
  • Vibration-prone machinery
  • Industrial electrical installations
  • Transport and infrastructure applications
  • Commercial and residential cable bundling
  • General cable management in indoor and outdoor environments
Environmental Benefits
  • Halogen-free construction helps reduce halogenated material content
  • RoHS and REACH compliance supports reduced use of restricted substances
  • 316 stainless steel pawl and durable PA66 body can extend service life and reduce replacement waste
  • Stainless steel components are recyclable at end of life
Warranty Information

Covered by CABAC warranty terms and Australian Consumer Law where applicable. No product-specific warranty period was identified for this composite PA66 and stainless steel pawl cable tie.

Available Now

Available through CABAC and authorised Australian electrical distributors.
