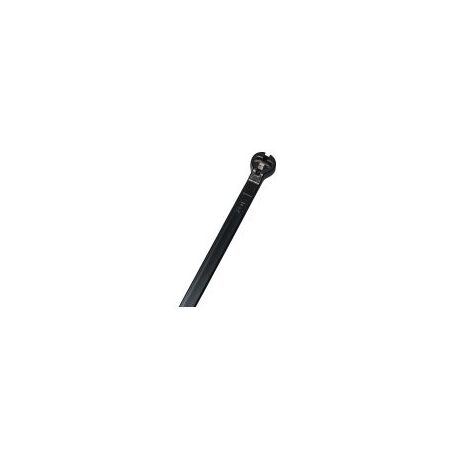

Steel Pawl Cable Tie PA66 300x4.8mm UV Black Pack of 100 Cabac
Cabac steel pawl cable tie 300x4.8mm, PA66 body with 316 stainless pawl, UV stabilised black, pack of 100. Ideal for switchboards and vibration-prone machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Composite cable tie, nylon cable tie with stainless steel pawl, UV-resistant cable tie, PA66 cable tie
Technical Specifications
- Product Code: CT290BK/100SP
- Pack Quantity: 100
- Material: Halogen-free Polyamide 6.6 (PA66) body with 316 stainless steel pawl
- Colour: UV-stabilised black
- Loop Tensile Strength: 22.6 kg
- Maximum Bundle Diameter: 81 mm
- Installation Temperature: -20°C to +85°C
- Working Temperature: -60°C to +85°C
- Short-Term Temperature: Up to +110°C
- Flammability: UL 94 V-2; plenum rated AH-2
- Chemical Resistance: Oils, greases, bases and chlorinated solvents
- Halogen Content: Halogen-free to EN 14582:2016
- Compliance: RoHS, REACH and TSCA compliant
- Certification: UL 62275 and EN 62275:2019
- Dimensions (H x L x W): 11mm x 300mm x 4.8mm
- Weight: 0.35 kg
Key Features
- Two-piece construction with 316 stainless steel locking pawl
- Designed for vibration, movement and higher mechanical loads
- UV-stabilised black PA66 suitable for indoor and outdoor applications
- Rounded edges help minimise damage to cable insulation
- Suitable for switchboards, control panels, machinery and transport applications
- Secure locking performance for dynamic cable bundling
- Compatible with cable-tie tensioning tools for controlled installation
Applications
- Switchboards and control panels
- Vibration-prone machinery
- Industrial electrical installations
- Transport and infrastructure equipment
- Bundling cables, hoses and ducts
- Indoor and outdoor cable management
Environmental Benefits
- Halogen-free construction helps reduce corrosive and harmful gas emissions during fire conditions
- RoHS and REACH compliance supports restricted-substance management
- Durable UV-stabilised PA66 and stainless steel construction can extend service life and reduce replacement waste
- PA66 and stainless steel components are recyclable through appropriate plastics and metal recycling streams
Warranty Information
Cabac warranty terms apply. Cabac states that its lifetime-of-product warranty covers repair or replacement during the marketed product lifetime when the product is used as specified by the manufacturer, subject to exclusions and Australian Consumer Law rights.
Available Now
Available through CABAC and authorised Australian electrical distributors.
