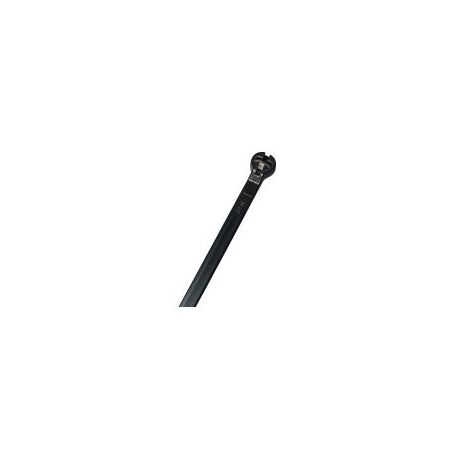

Steel Pawl Cable Tie PA66 370x4.8mm UV Black Pack of 100 Cabac
Cabac steel pawl cable tie 370x4.8mm, PA66 body with 316 stainless pawl, UV stabilised black, pack of 100. Ideal for switchboards and vibration-prone machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PA66 Cable Tie with Stainless Steel Pawl, UV Stabilised Nylon Cable Tie, Composite Cable Tie
Technical Specifications
- Part Number: CT360BK/100SP
- Material: Halogen-free Polyamide 6.6 (PA66) body
- Pawl Material: 316 stainless steel
- Colour: UV-stabilised black with carbon black additive
- Length: 370 mm
- Band Width: 4.8 mm
- Loop Tensile Strength: 22.6 kg
- Maximum Bundle Diameter: 103 mm
- Installation Temperature: -20°C to +85°C
- Working Temperature: -60°C to +85°C
- Short-Term Temperature: Up to +110°C
- Flammability: UL 94 V-2; Plenum Rated AH-2
- Chemical Resistance: Oils, greases, bases and chlorinated solvents
- Pack Quantity: 100
- Compliance: UL 62275, EN 62275:2019, RoHS, REACH and halogen-free EN 14582:2016
- Dimensions (H x L x W): 1.3mm x 370mm x 4.8mm
- Weight: 0.4 kg
Key Features
- 316 stainless steel pawl provides secure locking under vibration and movement
- UV-stabilised black PA66 body for indoor and outdoor applications
- Suitable for higher mechanical loads than standard all-plastic cable ties
- Rounded edges help reduce the risk of cable insulation damage
- Suitable for switchboards, control panels, machinery and transport installations
- Halogen-free construction with low-smoke characteristics
- Compatible with cable-tie tensioning tools for controlled installation
Applications
- Cable bundling in switchboards and control panels
- Securing cables on vibration-prone machinery
- Industrial and commercial electrical installations
- Transport and mobile equipment wiring
- Indoor and outdoor cable management
- General cable and wiring harness management
Environmental Benefits
- UV stabilisation can extend service life in outdoor applications and reduce replacement waste
- Halogen-free construction helps reduce corrosive and toxic halogenated emissions in the event of fire
- PA66 and stainless steel components are recyclable through suitable plastics and metals recycling streams
- Long service life in vibration-prone applications can reduce maintenance-related material consumption
Warranty Information
Covered by CABAC warranty terms and Australian Consumer Law. No product-specific warranty period was published for this cable tie; warranty claims are subject to correct installation, intended use and CABAC’s current warranty conditions.
Available Now
Available through CABAC and authorised Australian electrical distributors.
