Trade Discount 33%

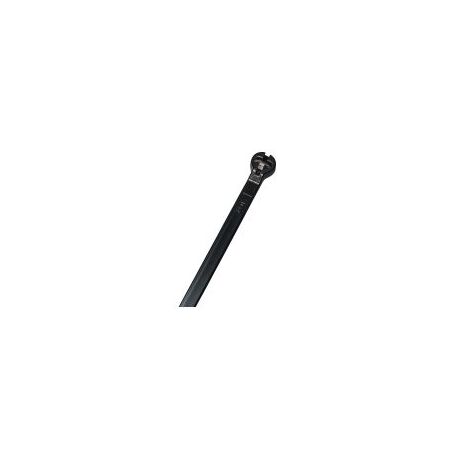

Steel Pawl Cable Tie PA66 370x7.0mm UV Black Pack of 100 Cabac
Cabac steel pawl cable tie 370x7.0mm, PA66 body with 316 stainless pawl, UV stabilised black, pack of 100. Ideal for switchboards and vibration-prone machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Heavy-Duty Steel Pawl Cable Tie, PA66 Cable Tie, Metal Pawl Cable Tie, UV-Stabilised Black Cable Tie
Technical Specifications
- Material: Halogen-free Polyamide 6.6 (PA66) body with 316 stainless steel pawl
- Length: 370 mm
- Band Width: 7.0 mm
- Loop Tensile Strength: 55 kg
- Maximum Bundle Diameter: 103 mm
- Operating Temperature: -60°C to +85°C
- Installation Temperature: -20°C to +85°C
- Short-Term Temperature: Up to +110°C
- Flammability Rating: UL 94 V-2; plenum rated AH-2
- UV Stability: UV-stabilised black with carbon black additive
- Chemical Resistance: Resistant to oils, greases, bases and chlorinated solvents
- Halogen Content: Halogen-free to EN 14582:2016
- Pack Quantity: 100 cable ties
- Product Code: CT365BK-HD/100SP
- Compliance: RoHS, REACH and TSCA compliant
- Certifications: UL 62275 and EN 62275:2019
- Dimensions (H x L x W): 2.1mm x 370mm x 7mm
- Weight: 0.8 kg
Key Features
- 316 stainless steel pawl provides secure locking under vibration, movement and higher mechanical loads
- UV-stabilised black PA66 construction for indoor and outdoor cable management
- 55 kg loop tensile strength for heavy-duty bundling applications
- Rounded edges help minimise potential cable insulation damage
- Suitable for switchboards, control panels, machinery and transport installations
- Halogen-free construction with low-smoke characteristics
- Permanent two-piece locking design
Applications
- Switchboards and control panels
- Industrial machinery subject to vibration
- Commercial and industrial electrical installations
- Transport and infrastructure equipment
- Outdoor cable bundling and routing
- High-load cable management applications
Environmental Benefits
- UV stabilisation and high mechanical strength can extend service life and reduce replacement waste
- 316 stainless steel pawl is durable and recyclable at end of service life
- Halogen-free construction supports reduced halogenated smoke and gas emissions in fire conditions
- RoHS and REACH compliance restricts specified hazardous substances
Warranty Information
Covered by CABAC's applicable published warranty and returns terms. Product-specific warranty duration should be confirmed with CABAC or the authorised distributor before purchase.
Available Now
Available through CABAC and authorised Australian electrical distributors.
