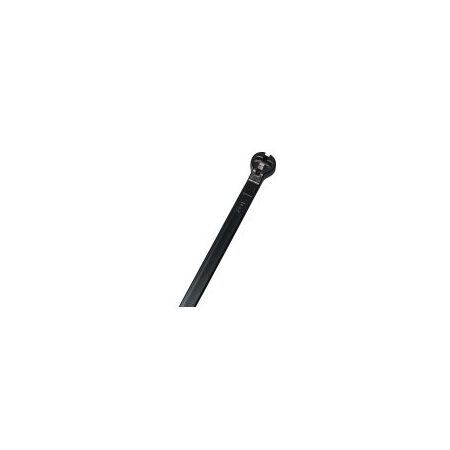

Steel Pawl Cable Tie PA66 620x7.0mm UV Black Pack of 100 Cabac
Cabac steel pawl cable tie 620x7.0mm, PA66 body with 316 stainless pawl, UV stabilised black, pack of 100. Ideal for switchboards and vibration-prone machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Nylon 66 Cable Tie with Stainless Steel Pawl, Metal Pawl Cable Tie, Heavy-Duty UV-Resistant Cable Tie
Technical Specifications
- Part Number: CT620BK-HD/100SP
- Pack Quantity: 100 cable ties
- Material: Halogen-free Polyamide 6.6 (PA66) body
- Pawl Material: 316 stainless steel
- Cable Tie Size: 620 x 7.0 mm
- Thickness: 1.7 mm
- Maximum Bundle Diameter: Approximately 178 mm
- Minimum Bundle Diameter: Approximately 4.8 mm
- Operating Temperature: -60°C to +85°C
- Short-Term Temperature: Up to +110°C
- Installation Temperature: -20°C to +85°C
- Flammability Rating: UL 94 V-2; plenum rated AH-2
- Chemical Resistance: Resistant to oils, greases, bases and chlorinated solvents
- Environmental Compliance: Halogen-free to EN 14582:2016; RoHS, REACH and TSCA compliant
- Product Certification: UL 62275 and EN 62275:2019
- Dimensions (H x L x W): 1.7mm x 620mm x 7mm
- Weight: 1.25 kg
Key Features
- Heavy-duty two-piece cable tie construction for increased mechanical loading
- 316 stainless steel pawl provides secure locking under vibration and movement
- UV-stabilised black PA66 suitable for indoor and outdoor use
- Rounded edges help minimise cable damage during installation
- Suitable for switchboards, control panels, machinery and transport applications
- Halogen-free construction
- Designed for permanent cable bundling and securing
Professional Installation Requirements
- No licensed installation is generally required. Select and install the cable ties in accordance with the electrical installation design, manufacturer instructions and applicable site requirements. Do not use cable ties as the sole support for installations where the wiring rules or equipment manufacturer require an alternative support method.
Applications
- Switchboards and control panels
- Vibration-prone machinery
- Industrial electrical installations
- Transport and mobile equipment wiring
- Commercial electrical installations
- Outdoor cable bundling exposed to ultraviolet radiation
- Infrastructure and general cable management
Standards & Compliance
- AS/NZS 3000:2018 is relevant to the selection and installation of cable management within electrical installations; no specific AS/NZS cable-tie certification was identified for this product. Product-specific conformity is declared to UL 62275 and EN 62275:2019.
Environmental Benefits
- Halogen-free PA66 construction reduces the use of halogenated polymer materials
- Declared compliance with RoHS and REACH substance restrictions
- UV stabilisation and stainless-steel locking components can extend service life and reduce replacement waste
- 316 stainless steel components are recyclable at end of life
- Durable construction supports longer service intervals in vibration-prone installations
Warranty Information
CABAC's general warranty provides a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct use, installation and proof of purchase. The product is also covered by applicable Australian Consumer Law guarantees. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns))
Available Now
Available through CABAC and authorised Australian electrical distributors; live stock and restock timing should be confirmed with the distributor. ([mssdatasolutions.com.au](https://www.mssdatasolutions.com.au/ct620bk-hd-100sp))
