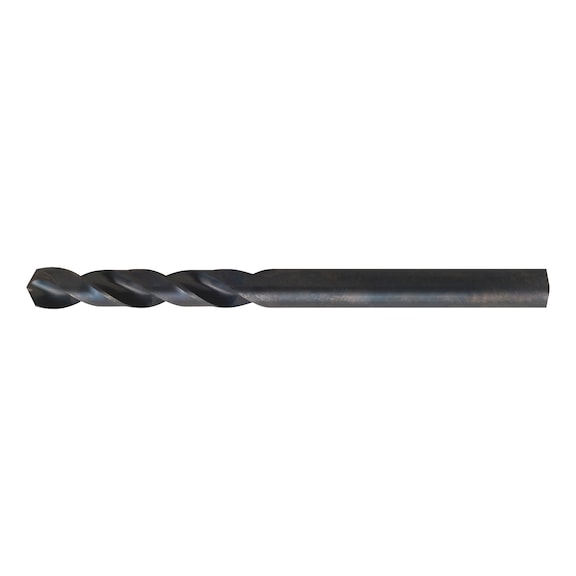

Steel Precision Drill Bit 2.8mm | HSS Material | Vaporised Finish | by Wurth
The Steel Precision Drill Bit 2.8mm is designed for efficient drilling in steel and cast iron, featuring a high-speed steel (HSS) construction and a vaporised finish for reduced material buildup. With a unique design that allows for precise spot drilling without centring, this drill bit is perfect for industrial and workshop applications, ensuring quick work progress and excellent performance on curved surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2.8 mm
- Length: 46 mm
- Chip flute length: 16 mm
- Shank diameter: 2.8 mm
- Shank style: Cylindrical
- Surface finish: Vaporised
- Cutting material: High-Speed Steel (HSS)
- Type: RN
- Tip angle: 130 degrees
- Suitable for tensile strength up to 1000 N/mm²
- Self-centring: Yes
- Standard / drilling depth: DIN 1897 / 3xD
- Quality: ZEBRA-Premium
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Dimensions (H x L x W): 46mm x 46mm x 2.8mm
- Weight: 0.1 kg
Key Features
- 20% lower infeed force compared to conventional drill bits for quicker work progress
- Precise spot drilling without centring, even on curved surfaces
- Excellent adhesive properties of cooling lubricants reduce material buildup
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Ideal for core holes
Professional Installation Requirements
- No professional installation required. Suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Suitable for drilling steel up to 1000 N/mm²
- Ideal for cast iron drilling
- Use with drills, cordless screwdrivers, and pedestal drilling machines
- Core hole drilling and precise spot drilling on curved surfaces
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth extra-short steel precision drill bit 2.8mm is available for immediate purchase. Ideal for machining steel and cast iron in industrial and workshop settings.
