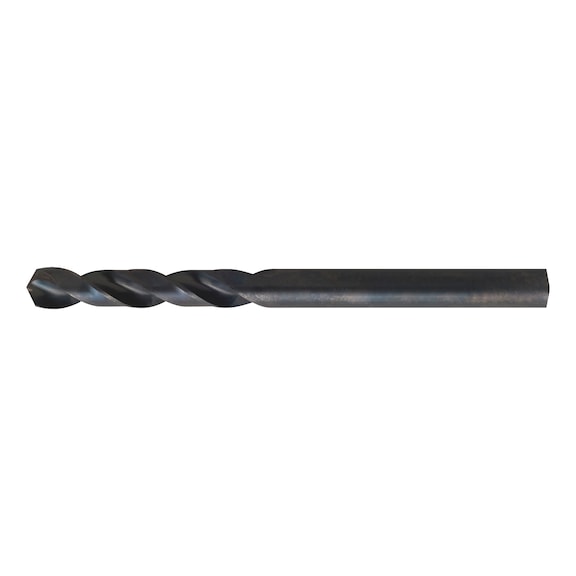

Steel Precision Drill Bit 3.7mm | HSS Material | RN Type | Vaporised Surface | by Wurth
The Steel Precision Drill Bit 3.7mm is designed for efficient drilling in steel and cast iron, featuring a high-speed steel (HSS) construction and a unique RN type design. With a vaporised surface for reduced friction and a 130-degree tip angle for precise spot drilling, this bit is perfect for general drilling applications and core holes, ensuring quick work progress and excellent adhesive properties of cooling lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Steel Precision Drill Bit 3.7mm | HSS Material | RN Type | Vaporised Surface | by Wurth
Brand: Wurth
SKU: 624700370
Alternatively Known As: Steel precision drill bit, Extra-short drill bit, HSS drill bit, RN type drill bit, Wurth drill bit 3.7mm
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 1897 / 3xD
- Diameter: 3.7 mm
- Length (l1): 52 mm
- Chip flute length (l2): 20 mm
- Shank diameter: 3.7 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1000 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Cast iron, Ductile iron, Malleable cast iron, Magnesium alloys, Copper, low-alloyed, Brass (short and long-chipping), Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 52mm x 52mm x 3.7mm
- Weight: 0.1 kg
Key Features
- 20% lower infeed force compared to conventional drill bits for quicker work progress and easier operation
- Precise spot drilling without centring, even on curved surfaces
- Ideal for core holes
- Excellent adhesive properties of cooling lubricants reduce material buildup
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- General drilling in steel up to 1000 N/mm²
- Drilling in cast iron
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth extra-short steel precision drill bit 3.7mm is available for immediate purchase, ideal for machining applications involving steel and cast iron.
