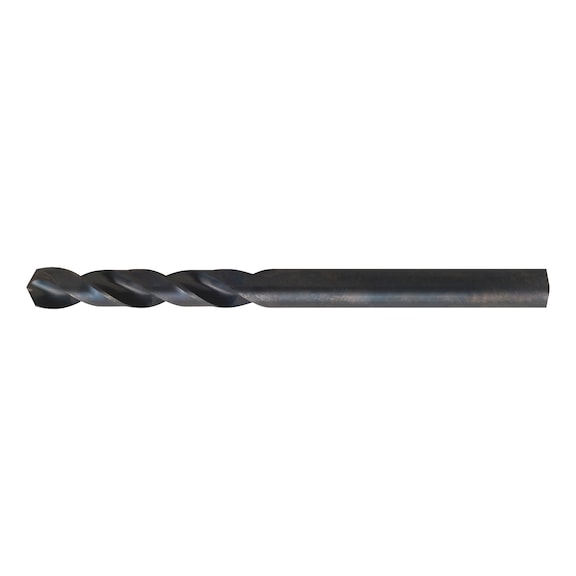

Steel Precision Drill Bit 4.6mm | HSS Material | Extra-Short Design | 130-Degree Tip | by Wurth
The Steel Precision Drill Bit 4.6mm is designed for efficient drilling in steel and cast iron, featuring a high-speed steel (HSS) construction and a unique extra-short design for precise spot drilling. With a 130-degree tip angle and 20% lower infeed force, this drill bit ensures quicker work progress and is ideal for core holes, making it perfect for both professional and DIY applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Steel Precision Drill Bit 4.6mm | HSS Material | Extra-Short Design | 130-Degree Tip | by Wurth
Brand: Wurth
SKU: 624700460
Alternatively Known As: Steel precision drill bit, Extra-short drill bit, HSS drill bit 4.6mm, Wurth drill bit for steel
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 1897 / 3xD
- Diameter: 4.6 mm
- Length: 58 mm
- Chip flute length: 24 mm
- Shank diameter: 4.6 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1000 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Cast iron, Ductile iron, Malleable cast iron, Magnesium alloys, Copper, Brass, Plastics (thermoset and thermoplastic)
- Dimensions (H x L x W): 58mm x 58mm x 4.6mm
- Weight: 0.1 kg
Key Features
- 20% lower infeed force compared to conventional drill bits for quicker work progress and easier operation
- Precise spot drilling without centring, even on curved surfaces
- Ideal for core holes
- Excellent adhesive properties of cooling lubricants reduce material buildup
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- General drilling in steel up to 1000 N/mm²
- Drilling in cast iron
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth extra-short steel precision drill bit 4.6mm is available for immediate purchase, ideal for machining applications involving steel and cast iron.
