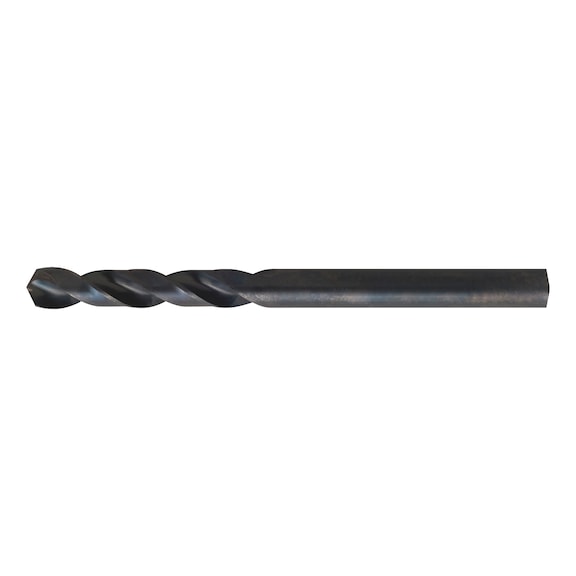

Steel Precision Drill Bit 5.6mm | HSS Material | Extra-Short Design | 20% Lower Infeed Force | by Wurth
The Steel Precision Drill Bit 5.6mm is designed for efficient drilling in steel and cast iron, featuring HSS material and an extra-short design for precise spot drilling without centering. With 20% lower infeed force compared to conventional bits, it ensures quicker work progress and is ideal for core holes. Perfect for use with standard drilling machines and cordless screwdrivers, this drill bit is a must-have for professionals seeking reliability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 1897 / 3xD
- Diameter: 5.6 mm
- Length (l1): 66 mm
- Chip flute length (l2): 28 mm
- Shank diameter: 5.6 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 130 Degree
- Service life (points system): 3 of 4 points
- Drilling speed (points system): 3 of 4 points
- Bore hole quality (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Drilling behaviour (points system): 3 of 4 points
- Suitable for drill (points system): 3 of 4 points
- Suitable for cordless drills (points system): 3 of 4 points
- Suitable for upright drilling machine (points system): 3 of 4 points
- Suitable for milling-drilling centre (points system): 1 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1000 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Cast iron, Ductile iron, Malleable cast iron, Magnesium alloys, Copper, low-alloyed, Brass, short-chipping, Brass, long-chipping, Plastics, thermoset, Plastics, thermoplastic
- Dimensions (H x L x W): 66mm x 66mm x 5.6mm
- Weight: 0.1 kg
Key Features
- 20% lower infeed force compared to conventional drill bits for quicker work progress and easier operation
- Precise spot drilling without centring, even on curved surfaces
- Ideal for core holes
- Excellent adhesive properties of cooling lubricants and reduced buildup of material deposits
- Product packaging made from 100% PCR (recycled plastic from household waste) and is 100% recyclable
Professional Installation Requirements
- No professional installation required. Suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- General drilling in steel up to 1000 N/mm²
- Drilling in cast iron
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth extra-short steel precision drill bit 5.6mm is available for immediate purchase, ideal for machining applications involving steel and cast iron.
