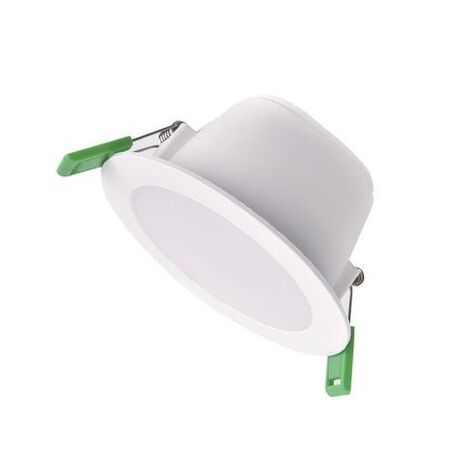

Step Dimmable Downlight 10W | 90mm Cutout | Selectable CCT

BRAND: 3A Lighting

SKU: DL1194/WH/TC

$10.40 List price: $13.50

+ −

30 Days Return Delivery Options

Step dimmable downlight with 10W power and 90mm cutout—ideal for residential and commercial spaces like hotels and shops. Built for versatility, with selectable color temperature and easy installation.

Description

Product Name/Title: Step Dimmable Downlight 10W | 90mm Cutout | Selectable CCT

SKU: DL1194/WH/TC

Alternatively Known As: LED Downlight, Dimmable LED Ceiling Light, Selectable CCT Downlight, Step LED Downlight

Technical Specifications

Power Wattage: 10W
Cut-out size: 90mm
Selectable Colour Temperature: 3000K, 4000K, 5000K
Material: Polycarbonate heatsink
IP Rating: IP44
Dimmable: Yes, 3 Stage Wall Switch Step Dimming
Integrated LED driver with flex & plug
Dimensions (H x L x W): 50mm x 100mm x 100mm
Weight: 0.2 kg

Key Features

3 Stage Wall Switch Step Dimming
Selectable colour temperature with an inbuilt DIP switch: 3000K/4000K/5000K
Polycarbonate heatsink
In-built LED dimmable driver with flex & plug
Integrated design for easy installation
IP44 rated

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure correct wiring and dimming functionality.

Applications

Residential
Commercial areas: Reception areas, hotels, and shops

Standards & Compliance

AS/NZS 60598 – Luminaires safety and performance (implied for lighting products)

Environmental Benefits

Energy-efficient LED technology reduces power consumption.
Long lifespan reduces waste and replacement frequency.

Warranty Information

3 years replacement warranty.

Available Now

The Step Dimmable Downlight 10W is available now for immediate purchase. Ideal for residential and commercial lighting applications.

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
