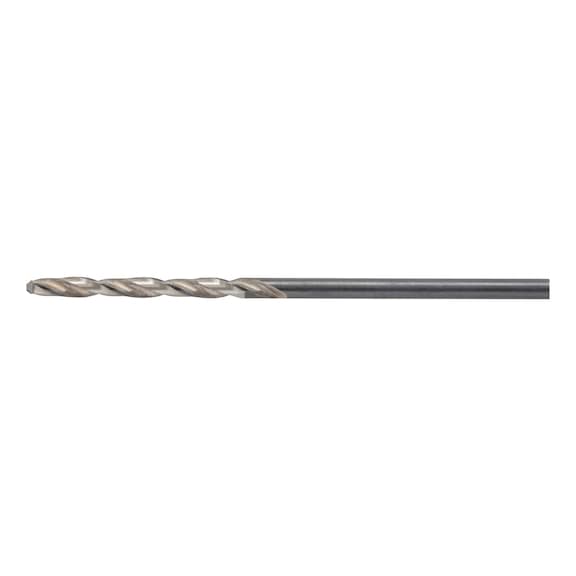

Stepped Twist Drill Bit 2.3mm | HSS Material | Self-Centring Design | 50% Longer Service Life | by Wurth
The Stepped Twist Drill Bit 2.3mm is engineered for precision drilling in various materials, including steel and wood. With a patent-pending tip geometry for faster drilling and significantly reduced vibration, this bit ensures precise, circular holes without tearing. Ideal for both professionals and DIY enthusiasts, it offers a longer service life and is compatible with standard drill chucks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2.3 mm
- Length: 53 mm
- Chip flute length: 27 mm
- Shank diameter: 2.3 mm
- Shank style: Cylindrical
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Standard / drilling depth: DIN 338 / 5xD
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to 1000 N/mm²
- Dimensions (H x L x W): 53mm x 53mm x 2.3mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, more comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly less vibration and up to 60% less torque required
- Precise, circular holes without tearing or splintering in a wide range of materials
- 3-flat shank from 4 mm diameter for no spinning in drill chuck and optimal power transmission
- Suitable for tensile strength up to 1000 N/mm²
- Self-centring design for precise spot drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drill chucks and machines.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, and hardwood
- Ideal for use with drills, cordless screwdrivers, and pedestal drilling machines
- Precise, hand-held drilling up to 20 mm diameter without pre-drilling
- Drilling out rivets and stud bolts
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable
- Reduced energy consumption during drilling by up to 20%
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth SMART STEP Twist Drill Bit 2.3mm is available for immediate purchase, ideal for precision drilling in metal and wood applications.
