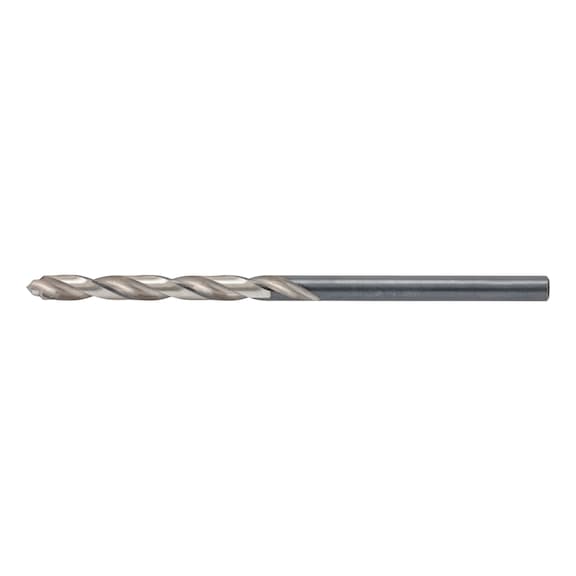

Stepped Twist Drill Bit 2.7mm | HSS Material | Patent-Pending Tip Geometry | 50% Longer Service Life | by Wurth
The Stepped Twist Drill Bit 2.7mm is engineered for precision drilling in various materials, including steel, wood, and plastics. With a patent-pending tip geometry, it offers faster drilling progress and significantly less vibration. Ideal for both professionals and DIY enthusiasts, this drill bit ensures precise, circular holes without tearing or splintering, making it perfect for spot drilling and enlarging existing holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2.7 mm
- Length: 61 mm
- Chip flute length: 33 mm
- Drill tip length: 1.7 mm
- Shank diameter: 2.7 mm
- Shank style: Cylindrical
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Suitable for tensile strength up to 1000 N/mm²
- Standard / drilling depth: DIN 338 / 5xD
- Self-centring: Yes
- Quality: ZEBRA-Premium
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Dimensions (H x L x W): 61mm x 61mm x 2.7mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly less vibration and up to 60% less torque required
- Precise, circular holes without tearing or splintering in various materials
- 3-flat shank from 4mm diameter prevents spinning in drill chuck and ensures optimal power transmission
- Suitable for hand-held drilling up to 20mm diameter without pre-drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drill chucks and machines.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, and hardwood
- Ideal for use with drills, cordless screwdrivers, and pedestal drilling machines
- Precise spot drilling, enlarging existing holes, and angled drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced energy consumption by up to 20% during drilling
- Packaging made from 100% recycled plastic and fully recyclable
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth SMART STEP Twist Drill Bit 2.7mm is available for immediate purchase, ideal for precision drilling in metal, wood, and plastics.
