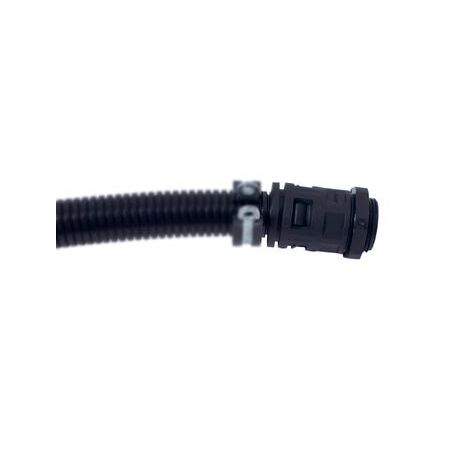

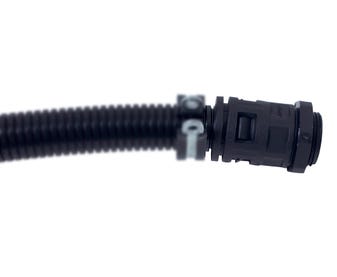

Straight Quick Connector 12mm | M12 Thread | IP66 Rated | Self-Locking by Cabac
The Cabac STRGHT QUICK CONN 12MM M12 is a high-performance, non-metallic straight connector designed for liquid tight conduit systems, offering secure push-fit installation and IP66 ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: STRGHT QUICK CONN 12MM M12
Brand: Cabac
SKU: CFM1-12B
Alternatively Known As: Straight Quick Connector 12mm, M12 Straight Conduit Connector, Polyamide Nylon Conduit Fitting
Technical Specifications
- Conduit Size: 12mm
- Thread Size: M12 x 1.5
- Material: Polyamide Nylon (PA6)
- Temperature Rating: -40 to +115°C (Intermittent to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.05 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- Self-locking push-fit installation onto conduit with no tools required
- IP66 rated ingress protection
- UV resistant and flame retardant with UL94 V-0 rating
- Temperature rating from -40 to +115 degrees Celsius (intermittent to +150 degrees Celsius)
- Anti-static and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and secure fitting.
Applications
- Cable and wire management systems
- Conduit fittings for electrical installations
- Industrial and commercial wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Free from halogen, phosphor, and cadmium, reducing environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Flame retardant and self-extinguishing properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac STRGHT QUICK CONN 12MM M12 is available for immediate purchase, ideal for use in electrical conduit systems requiring secure, flame retardant fittings.
