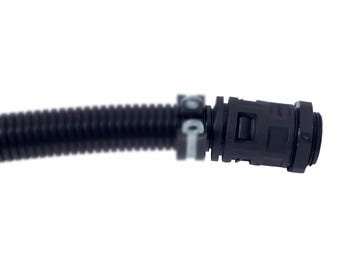

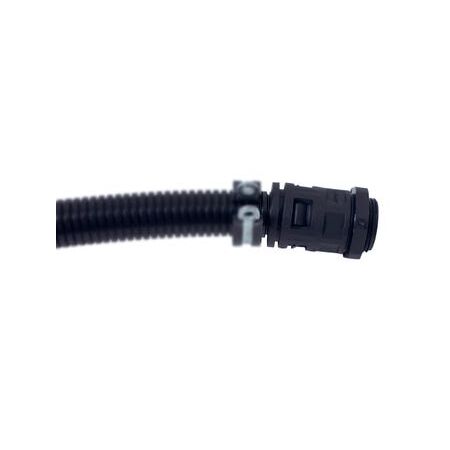

Straight Quick Connector 16MM M16 | IP66 Rated | Tool-Free Installation | Halogen-Free by Cabac
The Cabac Straight Quick Connector 16MM M16 is a high-performance, halogen-free nylon fitting designed for secure, tool-free installation on liquid tight conduits, offering IP66 protection and excellent temperature resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Straight Quick Conn 16MM M16
Brand: Cabac
SKU: CFM1-16B
Alternatively Known As: Straight conduit connector, Quick fit conduit connector, Nylon conduit fitting, M16 conduit connector
Technical Specifications
- Conduit Size: 16mm
- Thread Size: M16 x 1.5
- Material: Polyamide nylon (PA6)
- Temperature Rating: -40 to +115°C (intermittent to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.05 kg
Key Features
- Made from high quality polyamide nylon
- Halogen, phosphor and cadmium free
- Self-locking push-fit installation with no tools required
- IP66 rated ingress protection
- UV resistant and flame retardant (UL94 V-0)
- Temperature rating from -40 to +115°C (intermittent to +150°C)
- Anti-static and RoHS compliant
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with electrical standards and secure fitting.
Applications
- Cable management in industrial and commercial electrical installations
- Use with CABFLX low fire hazard conduits
- Suitable for environments requiring liquid tight conduit connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Free from halogen, phosphor, and cadmium reducing environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Flame retardant and self-extinguishing properties enhance safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Straight Quick Connector 16MM M16 is available for immediate purchase, ideal for electrical conduit installations requiring secure, liquid tight connections.
