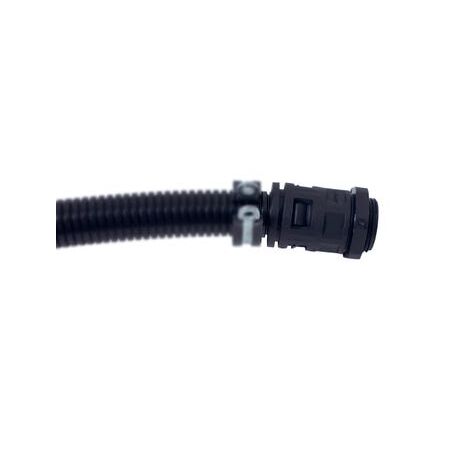

Straight Quick Connector 40MM M40 | IP66 Rated | Tool-Free Installation | Flame Retardant by Cabac
The Cabac Straight Quick Connector 40MM M40 is a high-performance, halogen-free polyamide nylon fitting designed for secure, tool-free push-fit installation onto low fire hazard conduits, offering IP66 ingress protection and flame retardant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Straight Quick Conn 40MM M40
Brand: Cabac
SKU: CFM1-40B
Alternatively Known As: Straight Conduit Connector 40mm, M40 Nylon Connector, Quick Fit Conduit Connector, IP66 Conduit Fitting
Technical Specifications
- Conduit Size: 40mm
- Thread Size: M40 x 1.5
- Material: Polyamide nylon (PA6)
- Temperature Rating: -40 to +115°C (intermittent up to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon, free from halogen, phosphor, and cadmium
- Self-locking push-fit installation onto conduit with no tools required
- IP66 rated ingress protection
- UV resistant and flame retardant with UL94 V-0 rating
- Temperature rating from -40 to +115 degrees Celsius (intermittent up to +150 degrees Celsius)
- Supplied complete with locknut
- Anti-static and RoHS compliant
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with electrical standards and secure fitting.
Applications
- Cable management in industrial and commercial electrical installations
- Use with low fire hazard conduits in residential and commercial buildings
- Suitable for environments requiring flame retardant and halogen-free fittings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor, and cadmium free materials reduce environmental toxicity
- Flame retardant and self-extinguishing properties enhance safety and reduce fire risk
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Straight Quick Connector 40MM M40 is available now for immediate purchase. Ideal for use with low fire hazard conduits in electrical cable management systems.
