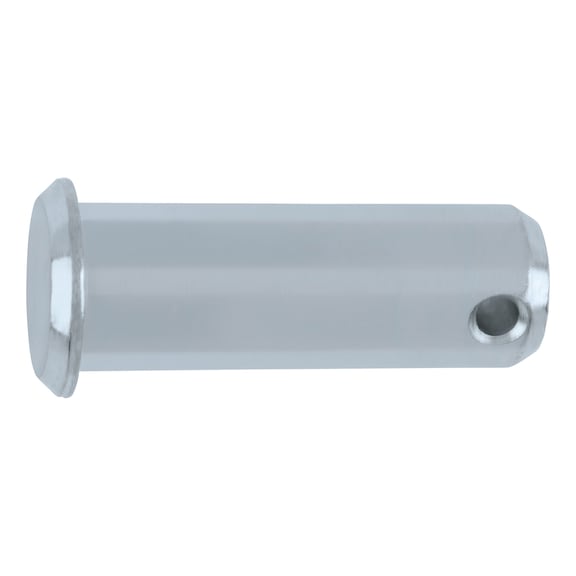

Stud with Small Head DIN 1434 | Steel Construction | Zinc-Plated & Blue Passivated | by Wurth
The Stud with Small Head DIN 1434 is designed for mechanical fastening in machinery and construction applications. Made from high-strength steel and featuring a zinc-plated surface with blue passivation, this stud ensures excellent corrosion resistance and durability. Ideal for automotive assembly and structural projects, it complies with DIN 1434 standards for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stud with Small Head DIN 1434 | Steel Construction | Zinc-Plated & Blue Passivated | by Wurth
Brand: Wurth
SKU: 26000123
Alternatively Known As: DIN 1434 Stud, Zinc Plated Stud Bolt, Small Head Stud, Blue Passivated Stud
Technical Specifications
- Nominal diameter (d1): 12 mm
- Length (l1): 50 mm
- Head diameter (dk): 17 mm
- Head height (k1): 3 mm
- Distance from bolt end to centre of hole (le): 5 mm
- Diameter of hole (d2): 4 mm
- Material: Steel
- Surface: Zinc plated with blue passivation
- Form: Form B mit Splintloch
- Standard: DIN 1434
- Dimensions (H x L x W): 3mm x 50mm x 12mm
- Weight: 0.05 kg
Key Features
- Steel construction for high strength and durability
- Zinc-plated surface with blue passivation for corrosion resistance
- Small head design for compact fastening
- Complies with DIN 1434 standard
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring secure fastening
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Stud with Small Head DIN 1434 is available for immediate purchase, ideal for mechanical and construction fastening applications.
