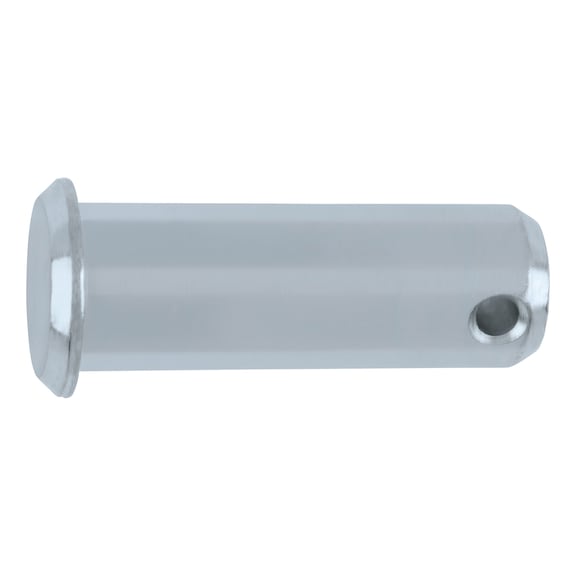

Stud with Small Head DIN 1434 | Steel Construction | Zinc-Plated & Blue Passivated | by Wurth
The Stud with Small Head DIN 1434 is designed for reliable mechanical fastening in machinery and automotive assemblies. Made from durable steel with zinc plating and blue passivation, it offers excellent corrosion resistance. Ideal for construction and industrial applications, this stud ensures secure connections with its small head design and split pin hole for added safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stud with Small Head DIN 1434 | Steel Construction | Zinc-Plated & Blue Passivated | by Wurth
Brand: Wurth
SKU: 26000142
Alternatively Known As: DIN 1434 Stud, Small Head Stud Bolt, Zinc Plated Stud, Blue Passivated Stud

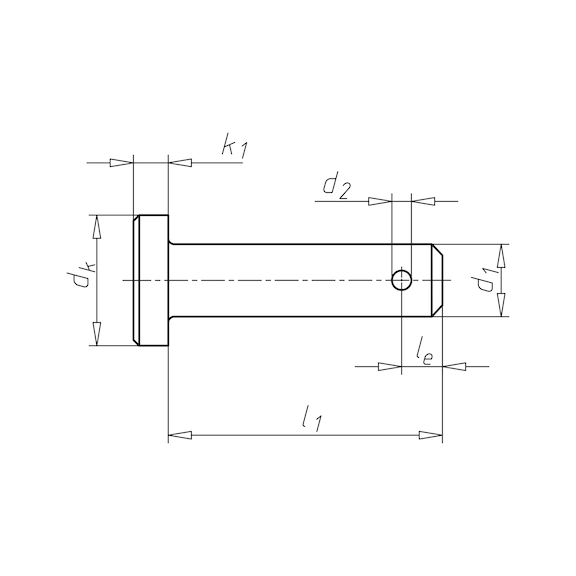

Technical Specifications
- Nominal diameter (d1): 14 mm
- Length (l1): 45 mm
- Head diameter (dk): 19 mm
- Head height (k1): 3 mm
- Distance from bolt end to centre of hole (le): 5 mm
- Diameter of hole (d2): 4 mm
- Material: Steel
- Surface: Zinc plated with blue passivation
- Form: Form B with split pin hole
- Standard: DIN 1434
- Dimensions (H x L x W): 3mm x 45mm x 14mm
- Weight: 0.05 kg
Key Features
- Steel construction with zinc plating and blue passivation for corrosion resistance
- Small head design according to DIN 1434 standard
- Form B with split pin hole for secure fastening
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper fastening and safety compliance.
Applications
- Mechanical fastening in machinery and automotive assemblies
- Construction and structural applications requiring secure bolt connections
- General industrial use where corrosion resistance is needed
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating and passivation extend product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Stud with Small Head DIN 1434 is available for immediate purchase, ideal for industrial and construction fastening applications.
