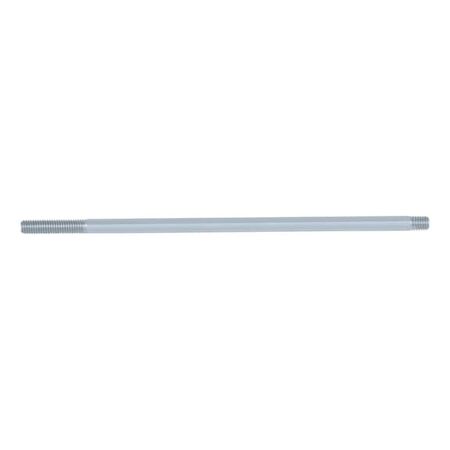

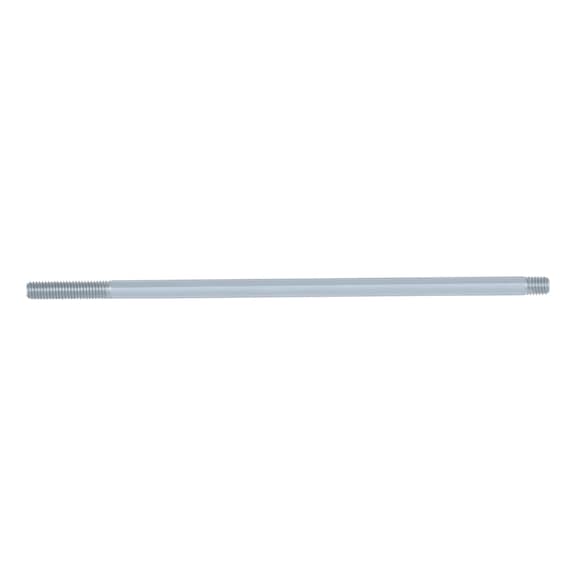

Stud with Threaded End M6x20 | Steel 5.8 | Zinc Plated Blue Passivated | @Pack of 10 | by Wurth
The Stud with Threaded End M6x20 is designed for secure fastening in mechanical assemblies and construction applications. Made from durable steel with a property class of 5.8, it features zinc plating with blue passivation for enhanced corrosion resistance. Ideal for automotive and machinery repair, this stud ensures compliance with DIN 939 standards and is RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stud with Threaded End M6x20 | Steel 5.8 | Zinc Plated Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 250606020
Alternatively Known As: Threaded Stud M6x20, Zinc Plated Stud Bolt, DIN 939 Stud, Steel Threaded Rod
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 20 mm
- Thread length (metric thread) (l2): 14.5 mm
- Thread length 2 (metric thread) (l3): 7.5 mm
- Standards: DIN 939
- Material: Steel
- Property class: 5.8
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: Without head
- Drive type: Without drive
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Shank diameter: 6 mm
- Product class: A
- Dimensions (H x L x W): 20mm x 20mm x 6mm
- Weight: 0.01 kg
Key Features
- Threaded stud with metric thread M6
- Steel material with property class 5.8 for strength
- Zinc plated with blue passivation for corrosion resistance
- Complies with DIN 939 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery repair
- Construction and structural applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Stud with Threaded End M6x20 is available for immediate purchase, ideal for mechanical and construction fastening applications.
