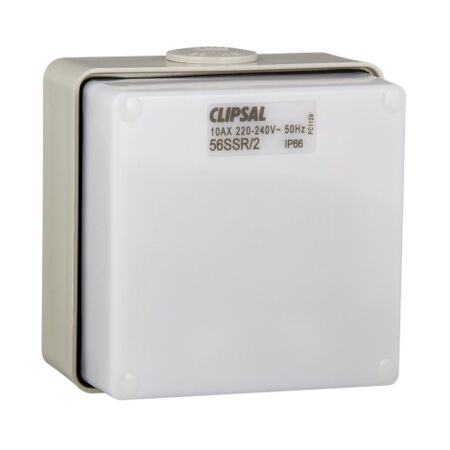

Sunset Switch 2-Wire | 240VAC 10A | IP66 Outdoor | Grey by Clipsal

BRAND: Clipsal
SKU: 56SSR/2-GY
$352.10 List price: $528.10
+
Sunset switch with 240VAC and 10A capacity—ideal for outdoor lighting control. Built for residential and commercial use, with IP66 rating and light level sensing from 20 to 500 lux.

Product Name/Title: Clipsal - Sunset Switch, Sunset Switch, 2-Wire, 240VAC, 10A - Grey

Brand: Clipsal

SKU: 56SSR/2-GY

Alternatively Known As: Outdoor Light Switch, Sunset Switch, Light Sensor Switch

Technical Specifications
  • Rated operational voltage: 250 V AC 50 Hz
  • Rated current: 10 AX
  • Material: PVC and polycarbonate
  • Ambient air temperature for operation: 45 °C
  • Installation direction: vertical/horizontal
  • Dimensions (H x L x W): 101mm x 70mm x 101mm
  • Weight: 0.4 kg
Key Features
  • IP66 rated for outdoor use.
  • Light level sensing range from 20 to 500 lux.
  • Timer setting range from 2 hours to 12 hours.
  • Switching hysteresis time of 90 seconds.
  • Supports resistive and fluorescent loads up to 10AX.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Outdoor lighting control for residential and commercial applications.
Standards & Compliance
  • Complies with AS/NZS 3133, AS/NZS 3100, and IEC 60669-2-1 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directive, ensuring reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Sunset Switch is available now for immediate purchase. Ideal for outdoor lighting control in various settings.

56SSR%252F2-GY (56SSR_2F2-GY, 244 Kb) [Download]
