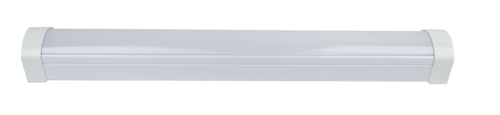

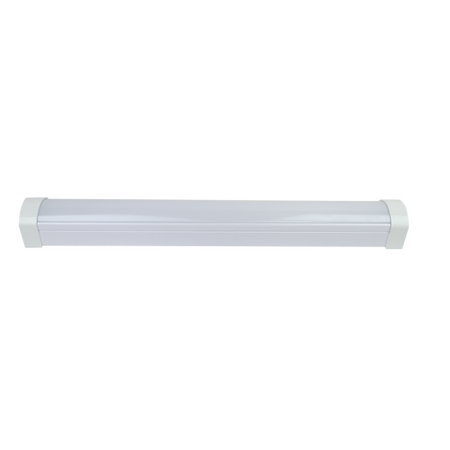

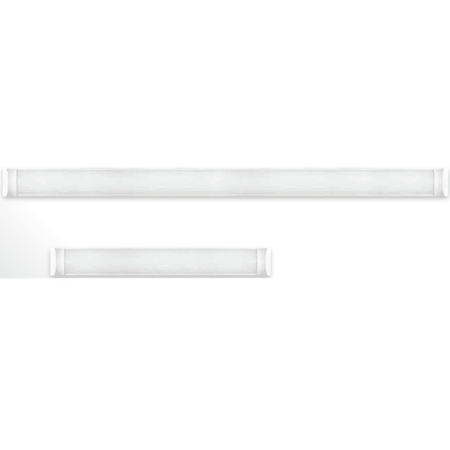

Superslim LED Batten 1200mm | 40W | Tri-Colour Switchable | Surface Mount by Lawell Lightning

BRAND: Lawel Lighting
SKU: TLLA12345W
$35.10 List price: $45.70
+ −
30 Days Return Delivery Options
Superslim LED batten with 40W power and tri-colour switchable options—ideal for kitchens, offices, and warehouses. Built for easy installation, with a powder-coated aluminium base and opal diffuser for uniform light distribution.

Product Name/Title: 1200mm Superslim Batten

Brand: Lawell Lightning

SKU: TLLA12345W

Alternatively Known As: ['LED batten light', 'Tri-colour LED batten', 'Slim LED strip batten', 'Surface mount LED batten', 'LED linear batten']

Technical Specifications
  • Input Voltage: 240V
  • Wattage: 40W
  • Lumen Output: 4000lm
  • Beam Angle: 100˚
  • Tri-colour switchable: 3000K / 4000K / 6000K
  • Non-dimmable
  • Powder coated aluminium base
  • Opal diffuser
  • Large 6mm terminal block

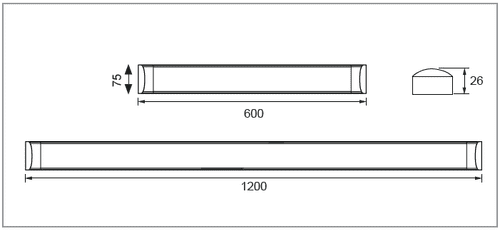

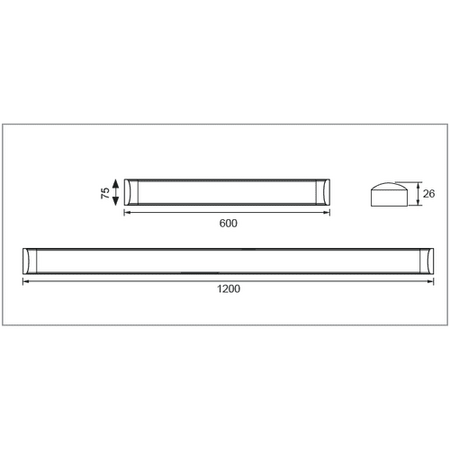

  • Dimensions (H x L x W): 26mm x 1200mm x 75mm
  • Weight: 1.1 kg
Key Features
  • Surface mounted LED strip batten
  • High efficiency SMD chips
  • Powder coated aluminium base
  • Opal diffuser for uniform light distribution
  • Large 6mm terminal block for easy installation
  • Tri-colour switchable: 3000K, 4000K, 6000K
  • Non-dimmable
Professional Installation Requirements
  • Installation by a licensed electrician is required to ensure compliance with Australian electrical safety standards.
Applications
  • Residential: Kitchens, garages, hallways, and utility rooms
  • Commercial: Offices, retail stores, warehouses, and car parks
  • General: Any indoor space requiring efficient, bright, and versatile lighting
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long lifespan minimizes waste and replacement frequency
  • Mercury-free and low heat emission for safer operation
Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for residential and commercial lighting applications requiring efficient, versatile, and easy-to-install LED battens.
