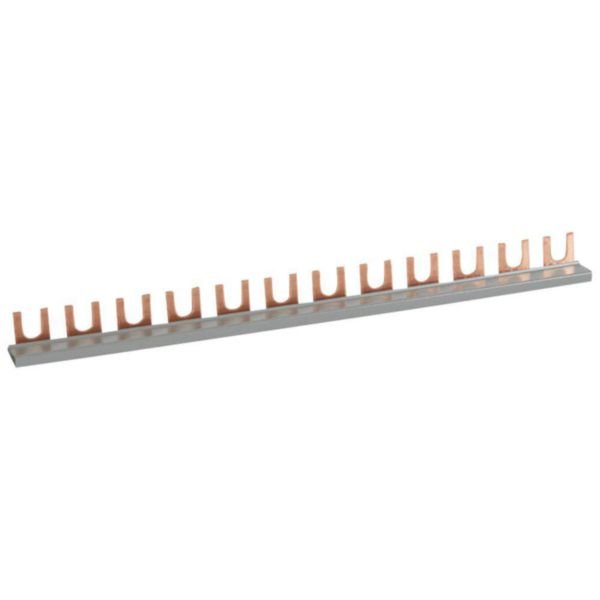

Supply Busbar Fork-Type 1P | Connects Up to 12 Devices | Insulated for Safety | @Each of 1 | by Legrand
The Supply Busbar Fork-Type 1P is designed to connect up to 12 devices in a single row, making it ideal for electrical switchboards and copper distribution systems. With its insulated design and end protection, this busbar ensures enhanced electrical safety and flexibility, allowing for custom sizing during installation. Perfect for residential, commercial, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Supply Busbar Fork-Type 1P | Connects Up to 12 Devices | Insulated for Safety | @Each of 1 | by Legrand
Brand: Legrand
SKU: 404911
Alternatively Known As: Single Pole Busbar, Fork Type Busbar, Electrical Busbar for Switchboards, Copper Distribution Busbar
Technical Specifications
- Number of phases: 1
- Number of poles: 1
- Suitable for number of devices: 12
- Module width: 17.7 mm
- Cross section: 16 mm²
- Length: 214 mm
- Can be cut to size: Yes
- Width in number of modular spacings: 12
- Rated permanent current Iu: 63 A
- Type of electric connection: Fork
- Insulated: Yes
- Rated surge voltage: 2 kV
- Conditioned rated short-circuit current Iq: 0.63 kA
- Max. rated operation voltage Ue: 400 V
- Rated short-time withstand current lcw: 1.92 kA
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Colour: Grey
- Operating / setting temperature: -20 to 50 °C
- Storage temperature: -40 to 70 °C
- Busbar type supplied: Horizontal
- Dimensions (H x L x W): 18mm x 214mm x 213mm
- Weight: 0.5 kg
Key Features
- Fork-type single pole supply busbar
- Suitable for up to 12 devices connected in one row
- Filled with end protection for safety
- Insulated for enhanced electrical safety
- Can be cut to size for flexible installation
- Horizontal busbar type
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Copper distribution systems in residential, commercial, and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and insulated design reduces risk of electrical faults and energy loss
- Supports efficient electrical distribution reducing energy waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Supply Busbar Fork-Type 1P for up to 12 devices connected in 1 row is available for immediate purchase, ideal for electrical switchboards and copper distribution applications.
