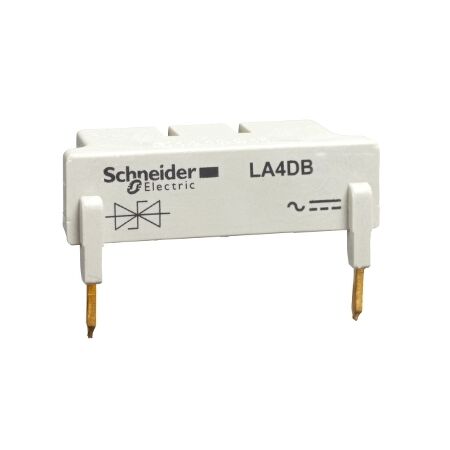

Suppressor Module 24V DC | Bidirectional Peak Limiting Diode | IP2X Rated by Clipsal

BRAND: Clipsal
SKU: LA4DB3B
$69.40 List price: $104.10
+
Suppressor module with 24V DC control circuit and bidirectional peak limiting diode—ideal for industrial control circuits. Built for transient voltage protection, with IP2X rating and screw mounting for easy installation.

Product Name/Title: TeSys D, Suppressor Module, bidirectional peak limiting diode, 24 V DC

Brand: Clipsal

SKU: LA4DB3B

Alternatively Known As: TeSys Suppressor Module, Peak Limiting Diode Module

Technical Specifications
  • Control Circuit Voltage: 24V DC
  • Maximum Peak Voltage: 2 Uc
  • Mounting Mode: By screws
  • IP Rating: IP2X conforming to IEC 60529
  • Ambient Air Temperature for Operation: -25 to 55 °C
  • Ambient Air Temperature for Storage: -40 to 80 °C
  • Dimensions (H x L x W): 51mm x 27mm x 42mm
  • Weight: 0.018 kg
Key Features
  • Bidirectional peak limiting diodes protect against transient voltage.
  • Designed for 24V DC control circuit voltage.
  • Mounts on top of contactor with screw fixing.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Used with TeSys Deca contactors in control circuits.
Standards & Compliance
  • Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
  • Green Premium compliant (RoHS/REACh) ensures reduced environmental impact.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Suppressor Module is available now for immediate purchase. Ideal for industrial applications requiring reliable transient voltage protection.

LA4DB3B (LA4DB3B, 223 Kb) [Download]
