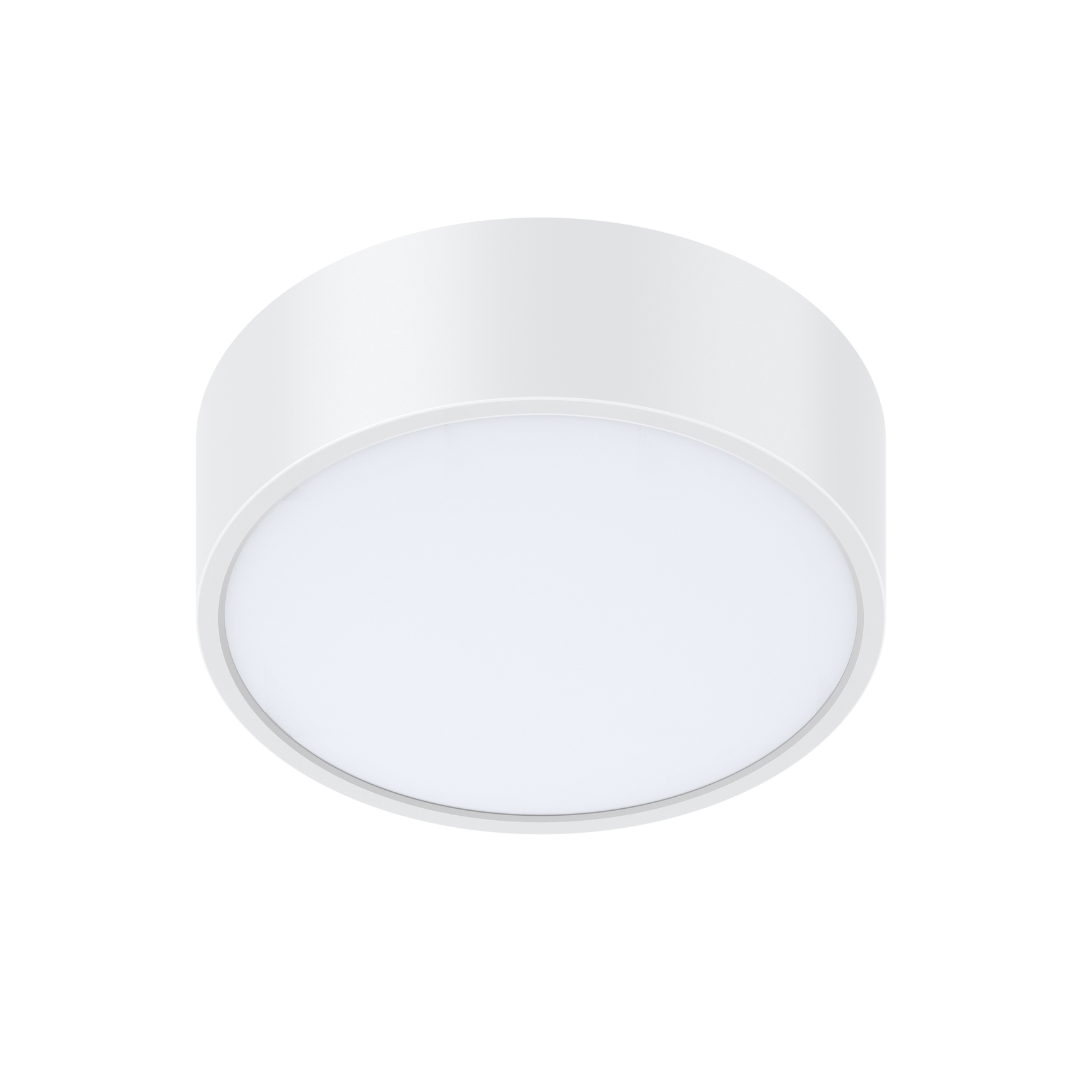

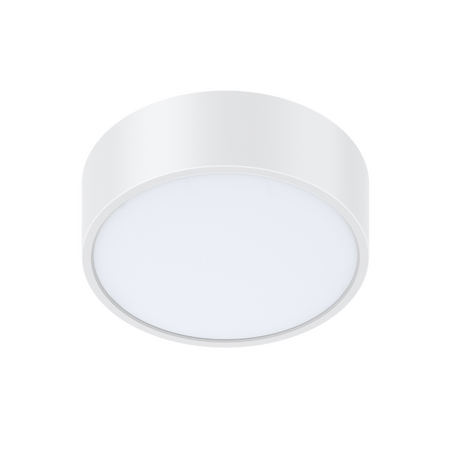

'Surface Mount Downlight 160x52mm 14/16W White Haneco'
'Haneco surface mount downlight features 160x52mm size, 14/16W power and 3000/4000/5000K CCT with IP54 diffuser in white. Ideal for ceilings without recess depth.'
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco M16W160R-EV, Meteor EVO 14W/16W Tri-Colour Surface Mount Downlight, 160 mm Surface Mount LED Downlight
- Product Code: M16W160R-EV
- SAP Code: 2002630
- Selectable Power: 14W or 16W
- Selectable CCT: 3000K, 4000K or 5000K
- Luminous Flux: 1,482/1,566/1,459 lm at 14W; 1,631/1,794/1,760 lm at 16W
- Efficacy: Up to 117 lm/W
- Beam Angle: 110°
- Input: 220–240V AC, 50/60Hz
- Power Factor: >0.9
- Electrical Classification: Class II
- Ingress Protection: IP54 front and rear
- Dimming: Phase-cut dimmable, trailing edge, 10–100%
- Driver: Integral, flicker-free
- Body and Diffuser: Polycarbonate
- Colour: White, RAL 9016
- CRI: >80
- Operating Temperature: -20°C to 40°C
- Projected Lifespan: 102,000 hours at 25°C, L80
- Smart Compatibility: KASTA compatible
- Surge Protection: Overload and short-circuit protection
- Dimensions (H x L x W): 52mm x 160mm x 160mm
- Weight: 0.4 kg
- Surface-mounted design for ceilings without recessed depth
- Slim 52 mm profile for concrete ceilings, fire zones and retrofit projects
- Selectable 14W or 16W output
- Selectable 3000K, 4000K and 5000K colour temperatures
- IP54 protection for suitable moisture-prone areas such as bathrooms and laundries
- Opal polycarbonate diffuser for soft, uniform illumination
- 110° beam angle for general lighting
- Phase-cut dimmable with compatible trailing-edge dimmers
- Class II construction with integral driver
- Flicker-free operation and KASTA smart compatibility
- Installation and mains electrical connection must be carried out by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements. Use a compatible trailing-edge dimmer where dimming is required.
- Concrete and solid ceilings
- Ceilings without sufficient recessed installation depth
- Residential and commercial retrofit projects
- Corridors, entrances and hallways
- Balconies, patios, verandahs and awnings
- Garages and walk-in wardrobes
- Hotel common areas and function spaces
- Kitchens, food preparation areas, restaurants and cafés
- Bathrooms and laundries where the IP54 rating is suitable
- Applicable luminaire safety standard: AS/NZS 60598.1, Luminaires — Part 1: General requirements and tests
- Applicable particular luminaire standard: AS/NZS 60598.2.1:2014, including applicable amendments, for fixed general purpose luminaires
- LED technology provides high efficacy of up to 117 lm/W, helping reduce energy consumption compared with less efficient light sources
- Projected 102,000-hour L80 lifespan can reduce replacement frequency and associated material waste
- Selectable power and colour temperature allow one fitting to serve multiple applications, reducing the need to stock different luminaires
- Polycarbonate construction is durable and can support extended product service life
Haneco provides a direct replacement warranty against manufacturing defects for 3–5 years unless otherwise stated for the specific product. Warranty claims require proof of purchase and evidence of installation by an authorised electrician; removal and reinstallation labour is generally excluded.
Available through Haneco and authorised Australian electrical wholesalers and distributors.
