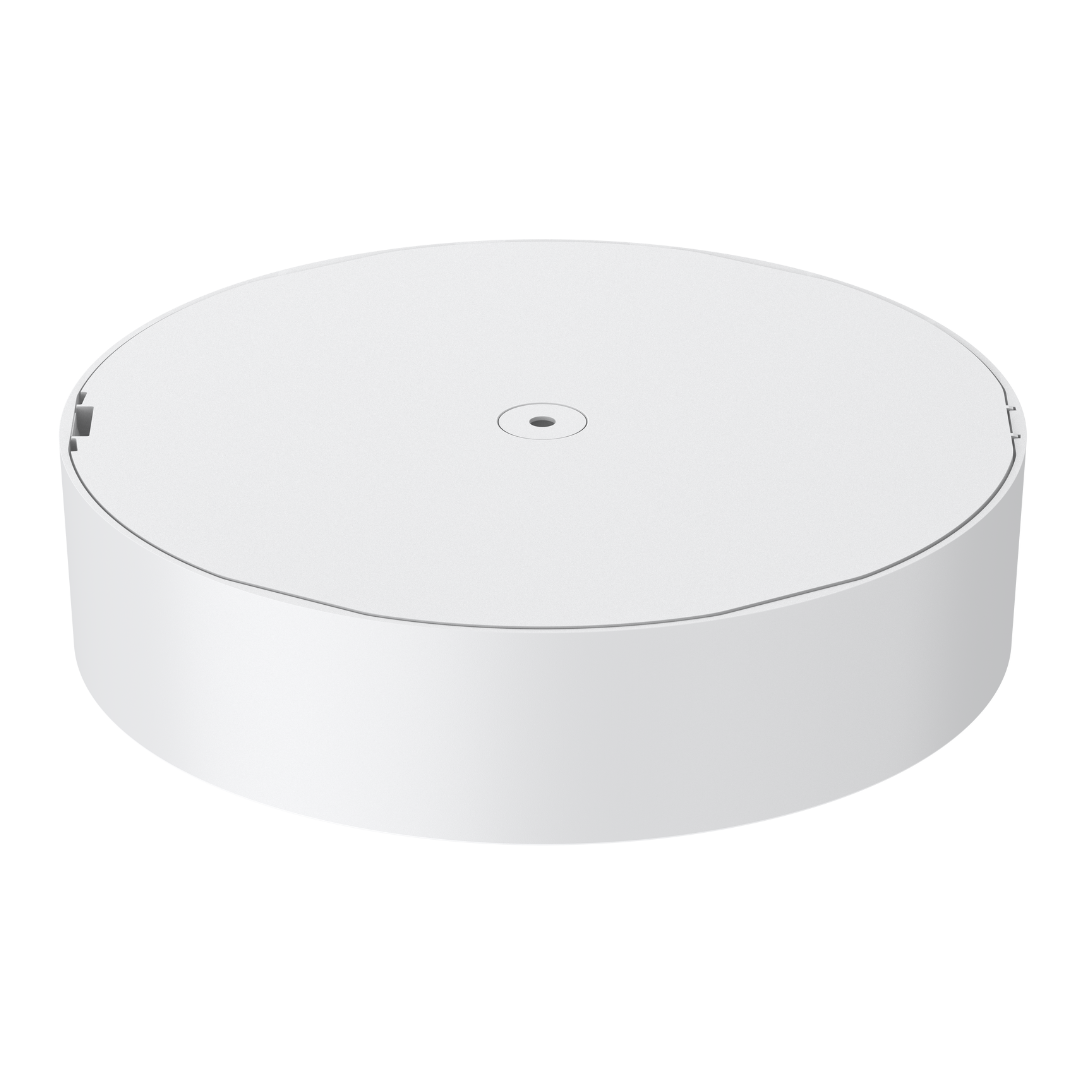

'Surface Mount Downlight 220x52mm 18/22W White Haneco'
'Haneco surface mount downlight features 220x52mm size, 18/22W power and 3000/4000/5000K CCT with IP54 diffuser in white. Ideal for ceilings without recess depth.'
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco Meteor EVO Commercial Surface Downlight, Surface Mounted LED Downlight, Tubular LED Downlight
- Product Code: M22W220R-EV
- SAP Code: 2002632
- Power: Selectable 18/22 W
- Luminous Output: 18 W: 2,158/2,243/2,189 lm; 22 W: 2,485/2,656/2,602 lm at 3000/4000/5000 K
- Efficacy: 18 W: 117/127/122 lm/W; 22 W: 115/126/120 lm/W
- Colour Temperature: Selectable 3000/4000/5000 K
- Input: 220–240 V AC, 50/60 Hz
- Dimming: Phase-cut dimmable, trailing edge, 10–100%
- Ingress Protection: IP54 front and body
- Beam Angle: 110°
- Colour Rendering Index: CRI >80
- Power Factor: >0.9
- Driver: Integral
- Electrical Classification: Class II
- Operating Temperature: -20°C to 40°C
- Lifespan: 102,000 hours at 25°C, L80
- Flicker: Flicker-free
- Body and Diffuser: Polycarbonate
- Finish: White, RAL 9016
- Weight: 0.55 kg
- Dimensions (H x L x W): 52mm x 220mm x 220mm
- Weight: 0.55 kg
- Surface-mounted design for ceilings with limited or no recess depth
- Selectable 18 W or 22 W output from one fitting
- Selectable 3000 K, 4000 K or 5000 K colour temperature
- IP54 protection suitable for areas including bathrooms and laundries
- Opal diffuser provides soft, uniform illumination
- Phase-cut dimmable using trailing-edge control from 10–100%
- Integral driver and Class II electrical construction
- 110° beam angle with multifaceted reflector
- Flicker-free operation
- Slim 52 mm profile
- Installation and mains electrical connection must be carried out by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000 requirements. Confirm dimmer compatibility before installation.
- Residential and commercial ceiling lighting
- Hallways, corridors and entries
- Bathrooms, laundries and other suitable wet-room applications
- Balconies, patios, verandahs and awnings
- Garages and walk-in wardrobes
- Hotels, restaurants, cafés and common areas
- Kitchens, food preparation areas and function spaces
- AS/NZS 60598.1:2017 – applicable general safety and performance requirements for luminaires
- AS/NZS 3000 – applicable electrical installation and wiring requirements; installation must be completed by a licensed electrician
- LED technology provides high efficacy of up to 127 lm/W, helping reduce energy consumption compared with less efficient conventional lighting
- Published L80 design life of 102,000 hours can reduce replacement frequency and associated waste
- Selectable output and colour temperature allow one fitting to meet varied lighting requirements, reducing product replacement during fit-outs
Haneco provides a direct-replacement warranty against manufacturing defects for 3–5 years unless otherwise stated. Warranty coverage requires installation by a licensed electrician and does not generally include removal or reinstallation labour. ([haneco.com.au](https://haneco.com.au/wp-content/uploads/2026/01/Product-Warranty-2026.pdf))
Available through Haneco and authorised Australian electrical wholesalers and distributors.
