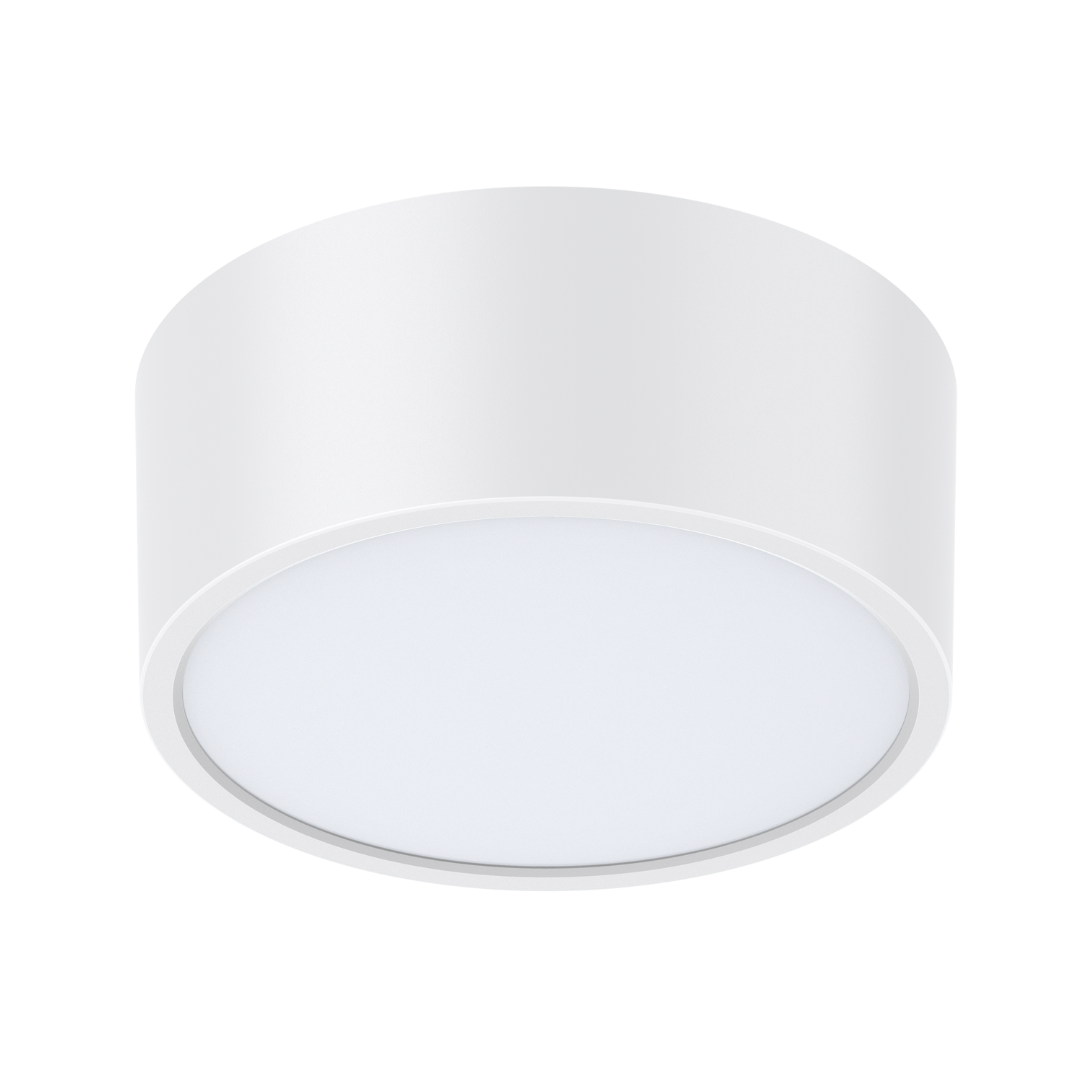

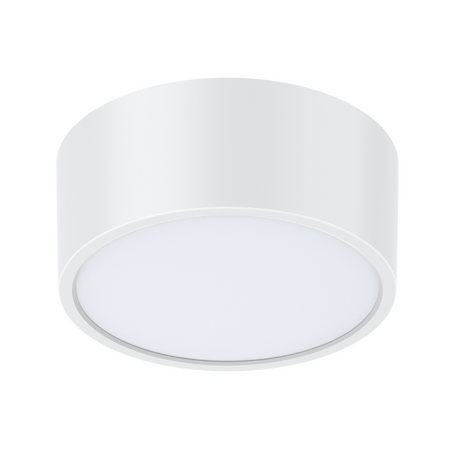

'Surface Mount Downlight 90x52mm 4/6W 3000/4000/5000K White Haneco'
'Haneco surface mount downlight features 90x52mm size, 4/6W power and 3000/4000/5000K CCT with IP54 diffuser in white. Ideal for ceilings without recess depth.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco Meteor EVO Surface Mount Downlight, Haneco 90mm Surface Mount LED Downlight, Tri-Colour Surface Mount Downlight
Technical Specifications
- Product Code: M6W90R-EV
- Power: Selectable 4W or 6W
- Luminous Flux: 4W: 414/426/430 lm; 6W: 627/627/632 lm at 3000K/4000K/5000K
- Colour Temperature: Selectable 3000K, 4000K or 5000K
- Efficacy: 4W: 107/112/112 lm/W; 6W: 115/117/116 lm/W
- Input: 220-240 V AC, 50/60 Hz
- Dimming: Phase-cut dimmable, trailing-edge, 10-100%
- Beam Angle: 110°
- Ingress Protection: IP54 front and body
- CRI: >80
- Power Factor: >0.9
- Driver: Integral
- Electrical Classification: Class II
- Material: Polycarbonate body and diffuser
- Finish: White, RAL 9016
- Operating Temperature: -20°C to 40°C
- Rated Life: 102,000 hours at 25°C, L80
- Flicker: Flicker-free
- Smart Compatibility: KASTA compatible
- Dimensions (H x L x W): 52mm x 90mm x 90mm
- Weight: 0.2 kg
Key Features
- Surface-mounted design for ceilings without sufficient recess depth
- Selectable 4W or 6W output
- Tri-colour CCT selection between warm, neutral and cool white
- IP54 rating suitable for bathrooms, laundries and other damp areas
- Opal diffuser provides soft, uniform illumination
- Multifaceted reflector helps reduce glare and improve light distribution
- Trailing-edge phase-cut dimming from 10% to 100%
- Compact 90mm diameter and 52mm profile
- Suitable for corridors, entries, balconies, patios, garages and general ceiling lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Confirm dimmer compatibility and suitability for the installation environment before connection.
Applications
- Residential and commercial corridors
- Entries, foyers and common areas
- Bathrooms and laundries
- Balconies, patios, verandahs and awnings
- Garages and walk-in wardrobes
- Kitchens, food preparation areas and hospitality spaces
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires
- AS/NZS 3000:2018: Electrical installation and wiring requirements for connection by a licensed electrician
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- Selectable 4W or 6W output allows energy use to be matched to required light levels
- Rated L80 life of up to 102,000 hours can reduce replacement frequency and associated waste
- High efficacy of up to 117 lm/W supports efficient lighting design
Warranty Information
Haneco provides a direct replacement warranty against manufacturing defects, generally 3-5 years unless otherwise stated. Warranty is subject to the current Haneco warranty terms and licensed installation requirements.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
