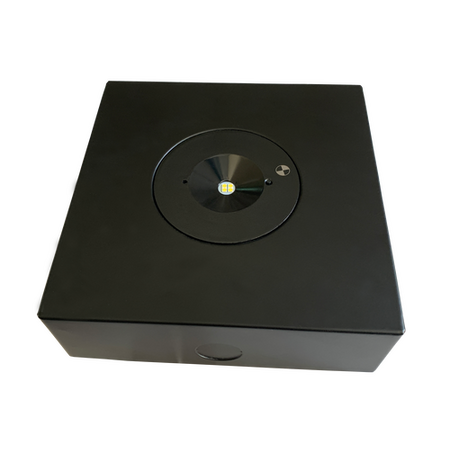

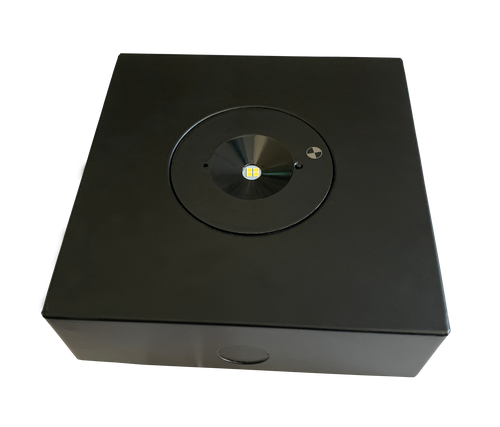

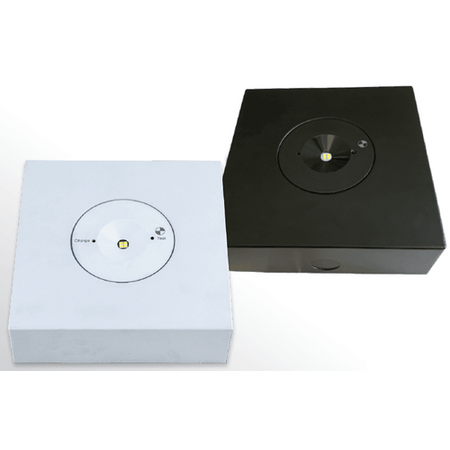

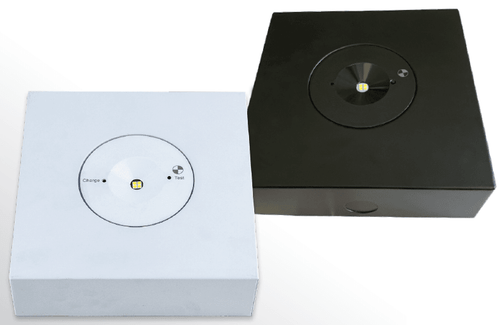

Surface Mount Emergency Downlight | 3W | 50,000hr LED | Quick Fit by Lawell Lightning

BRAND: Lawel Lighting

SKU: LWUF6030S

$51.00 List price: $66.50

+ −

30 Days Return Delivery Options

Surface mount emergency downlight with 3W power and 50,000hr LED lifespan—ideal for commercial and residential buildings. Built for energy efficiency, with quick fit bracket for easy installation and non-maintained operation.

Description
Attachments

Product Name/Title: Surface Mount Emergency Downlight

Brand: Lawell Lightning

SKU: LWUF6030S

Alternatively Known As: emergency downlight, surface mount emergency light, UFO emergency light, LED emergency downlight, non-maintained emergency light, AS2293 emergency light

Technical Specifications

Input Voltage: 240V
Wattage: 3W
Construction: Polycarbonate body with aluminium heat sink
Mounting: Surface mounted
Operating Mode: Non-maintained
Testing System: Manual
Battery: Lithium 2200mAh, 3 hour discharge
AS2293 Classification: D40
Operating Temperature: 1˚C to 40˚C
LED Lifetime: 50,000 hours

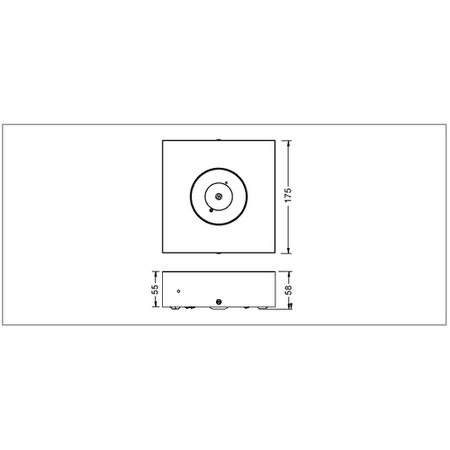

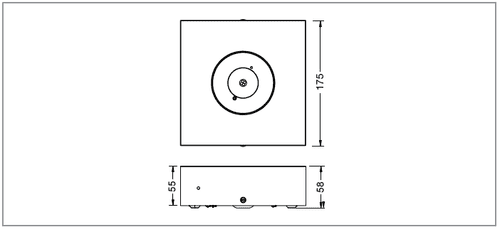

Dimensions (H x L x W): 58mm x 175mm x 175mm
Weight: 0.93 kg

Key Features

Low power consumption
50,000hr LED for energy efficiency and long life
Quick fit bracket for fast ceiling and wall mounting
Easy testing and maintenance
Non-maintained operation
3 hour discharge duration
3 year warranty
Hard-wired installation
Designed and manufactured to AS/NZS2293.3

Professional Installation Requirements

Installation must be performed by a licensed electrician to ensure compliance with AS/NZS 2293 and local electrical regulations.

Applications

Commercial buildings: offices, retail stores, warehouses
Residential complexes: apartments, common areas
Public facilities: schools, hospitals, community centers
Any property requiring compliant emergency lighting during power outages

Standards & Compliance

Complies with AS/NZS 2293 – Emergency Escape Lighting and Exit Signs

Environmental Benefits

Energy-efficient LED reduces power consumption and carbon footprint
Long 50,000 hour lifespan minimizes waste and replacement frequency
Low power operation supports sustainable building practices

Warranty Information

3 year warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for commercial, residential, and public buildings requiring compliant emergency lighting solutions.

E6030S%20Datasheet.pdf (E6030S_Datasheet.pdf, 370 Kb) [Download]

E6030S%20ies.pdf (E6030S_ies.pdf, 150 Kb) [Download]
