Trade Discount 25%

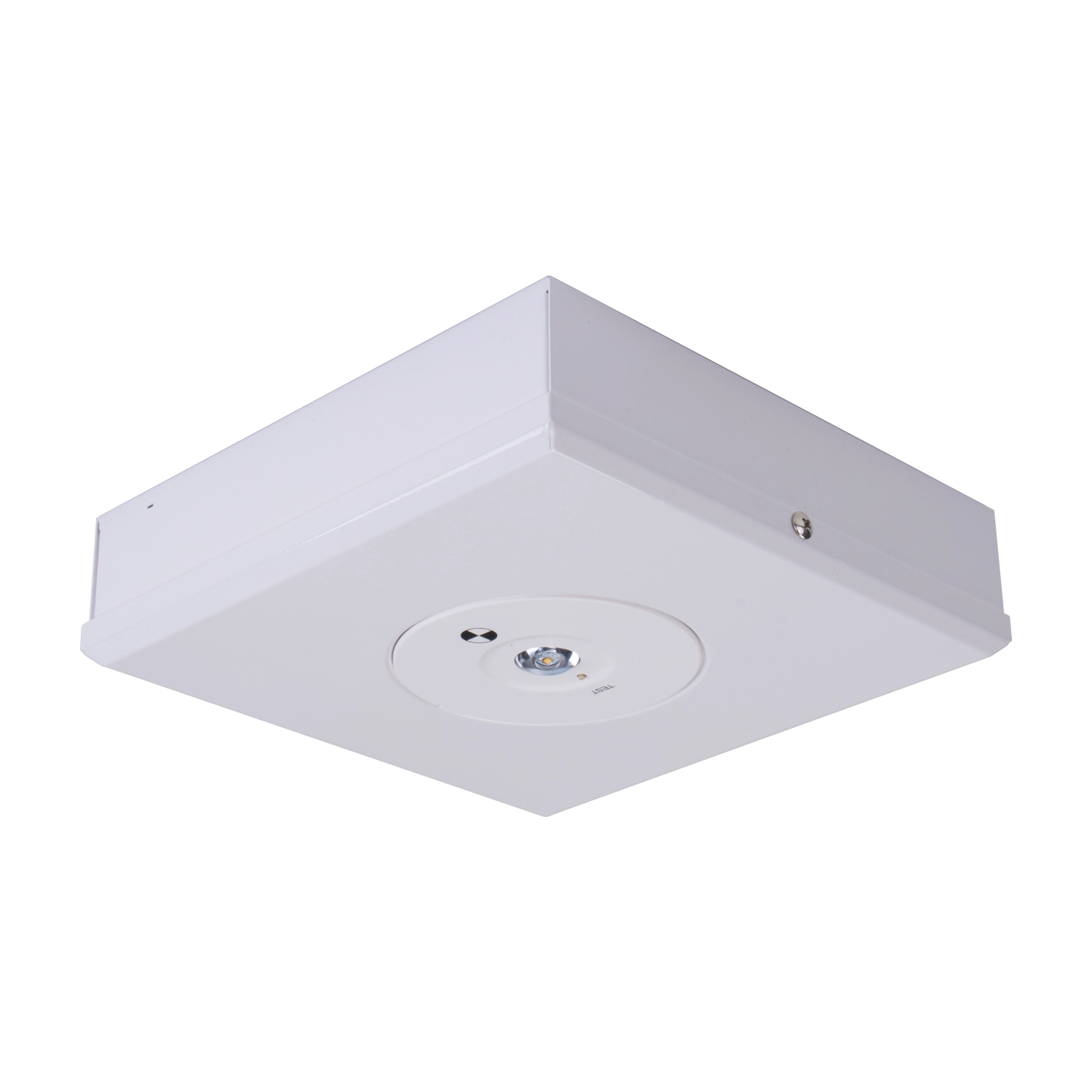

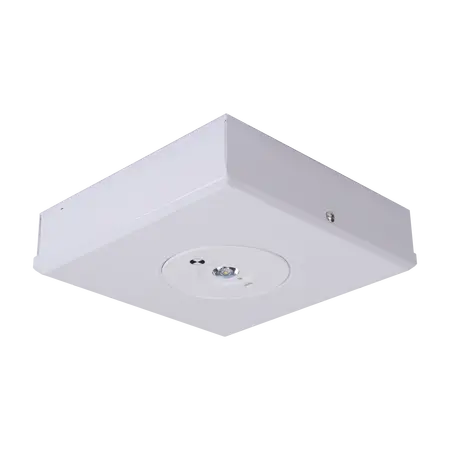

Surface Mount LED Emergency 3.5W Non-Maintained D63 White Domus
Domus surface mount LED emergency light, 3.5W, non-maintained, classification D63, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: D63 Surface-Mount Emergency Light, Non-Maintained LED Emergency Luminaire, Domus EVAC D63 SM
Technical Specifications
- Input Voltage: 240V AC
- Power Consumption: 3.5W
- Lumen Output: 380lm
- Colour Temperature: 4500K
- Operating Mode: Non-maintained
- Classification: D63
- Ingress Protection: IP20
- Battery: LiFePO4
- Material: Pressed steel
- Charge Time: 24 hours
- Terminal: Large PA16 terminal
- Protection: Overcharge, discharge and battery polarity-reversal protection
- Approval: AS 2293.3-2005 with Amendments 1 and 2, Annex C; EMC compliant
- Dimensions (H x L x W): 52mm x 180mm x 180mm
- Weight: 0.8 kg
Key Features
- Surface-mount emergency light for interior commercial applications
- White finish
- Energy-efficient LED light source
- Non-maintained emergency operation
- D63 photometric classification
- Polarity-reversal protection for safer commissioning
- Includes adaptor plate for larger mounting holes
- Suitable for apartments, shopping centres, offices and hospitality venues
- Four-year replacement warranty including battery
Professional Installation Requirements
- Installation and connection to the 240V AC supply must be carried out by a licensed electrician in accordance with applicable electrical installation and emergency lighting requirements, including AS/NZS 3000 and AS/NZS 2293.1.
Applications
- Commercial buildings
- Apartments and residential common areas
- Shopping centres
- Offices
- Hospitality venues
- Interior emergency evacuation lighting installations
Standards & Compliance
- AS/NZS 2293.3 for emergency luminaires and exit signs; the manufacturer states compliance with the AS/NZS 2293.3 series
- AS/NZS 2293.1 for emergency lighting system design, installation and operation
- AS/NZS 3000 for electrical installation and 240V wiring requirements
Environmental Benefits
- LED technology provides emergency illumination with relatively low power consumption
- Pressed steel housing is recyclable through appropriate metal recycling streams
- Long-life emergency lighting construction can reduce replacement frequency and associated material waste
Warranty Information
Four-year replacement warranty including the battery. Domus warranty eligibility requires installation by a licensed electrician and proof of purchase; commercial emergency lighting is listed with a four-year replacement and four-year battery replacement warranty.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
