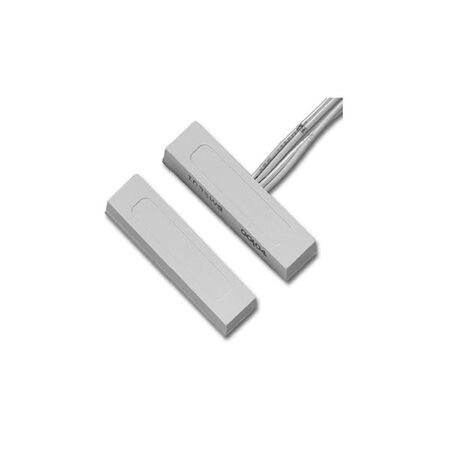

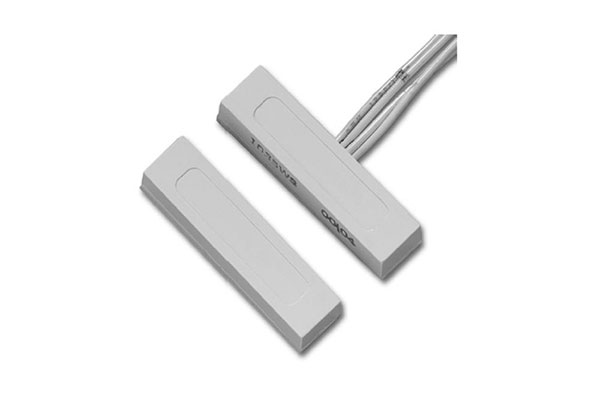

Surface Mount Reed Switch Self Adhesive Hardwired Tecom

BRAND: Ness
SKU: 122-102
$11.10 List price: $14.80
+ −
30 Days Return Electricians Unlock Trade Access
Tecom surface mount reed switch features a self-adhesive fitting for hardwired security. Ideal for door and window contacts in alarm systems.

Alternatively Known As: Hardwired Magnetic Door Contact, Surface-Mount Reed Contact, Door and Window Alarm Contact

Technical Specifications
  • Contact Type: Normally closed (N.C.)
  • Mounting Method: Self-adhesive surface mount
  • Material: ABS
  • Colour: White
  • Operating Gap: 15–25 mm
  • Connection: Hardwired security alarm circuit
  • Product Type: Magnetic reed door/window contact
  • Dimensions (H x L x W): 6.35mm x 27mm x 14.8mm
  • Weight: 0.1 kg
Key Features
  • Self-adhesive mounting for suitable door and window surfaces
  • Normally closed reed contacts for intrusion alarm circuits
  • Compact surface-mount design
  • White ABS housing
  • Suitable for door, window and cabinet monitoring
  • 15–25 mm magnetic operating gap
Professional Installation Requirements
  • Installation should be completed by a suitably qualified security installer. Connect to a compatible extra-low-voltage alarm input and position the switch and magnet in accordance with the alarm system manufacturer's requirements.
Applications
  • Hardwired security alarm systems
  • Door and window opening detection
  • Cabinet and access-panel monitoring
  • Commercial and residential intrusion detection installations
Standards & Compliance
  • AS/NZS 2201.5:2008 – Intruder alarm systems, where installed as part of a compliant alarm system
Environmental Benefits
  • Compact ABS construction reduces material use compared with larger contact housings
  • Long service life can reduce replacement frequency and associated waste
  • Passive switching operation requires no standalone battery
Warranty Information

Tecom hardware is listed with a 5-year manufacturer warranty through Australian Tecom distribution channels, subject to the applicable warranty terms.

Available Now

Available through Tecom and authorised Australian security-system distributors.
