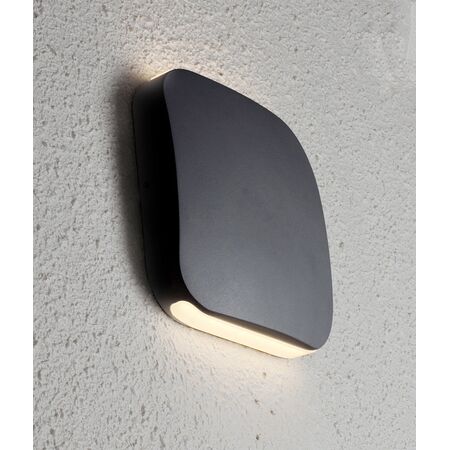

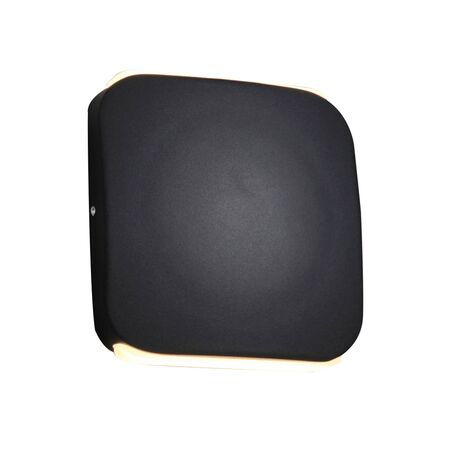

Surface Mounted LED Exterior Square Up/Down Wall Light | IP54 Rated | 3000K Warm White | 808lm Output | by CLA Lighting
Illuminate your outdoor spaces with the Surface Mounted LED Exterior Square Up/Down Wall Light, featuring an IP54 rating for dust and water resistance. With a warm white 3000K color temperature and an impressive 808 lumens output, this light is perfect for residential and commercial applications, including pathways and garden walls. Built with energy-efficient LED technology, it ensures long-lasting performance and reduced power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Wattage: 9W
- Colour Temperature: 3000K (Warm White)
- Lumens Output: 808lm
- Beam Angle: 120 degrees
- Input Voltage: 200-250V AC
- Power Factor: ≥0.5
- CRI: 80
- LED Chips: 32pcs SMD2835
- Ambient Temperature Range: -20 to 45°C
- IP Rating: IP54
- Not suitable for dimming
- Suitable for 2-way switching and sensor integration

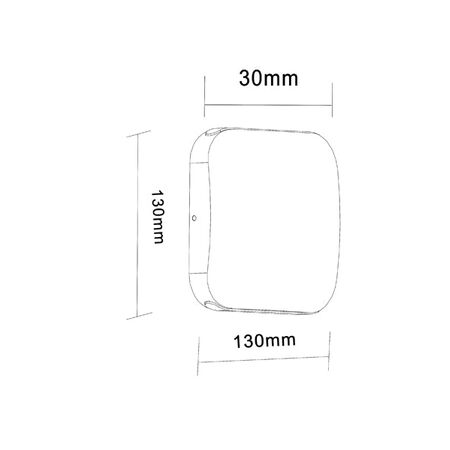

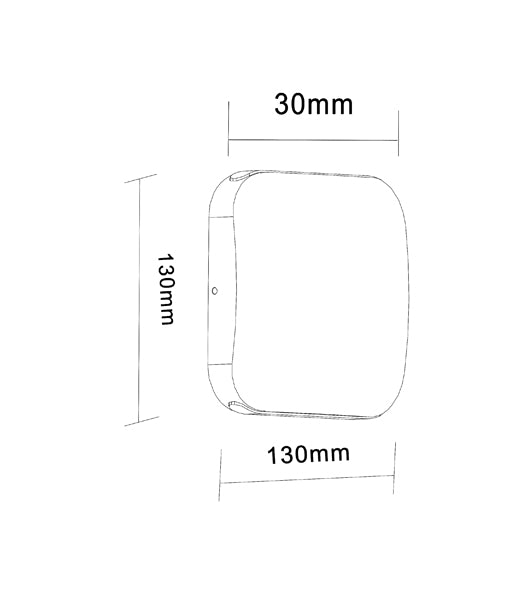

- Dimensions (H x L x W): 130mm x 50mm x 130mm
- Weight: 0.7 kg
Key Features

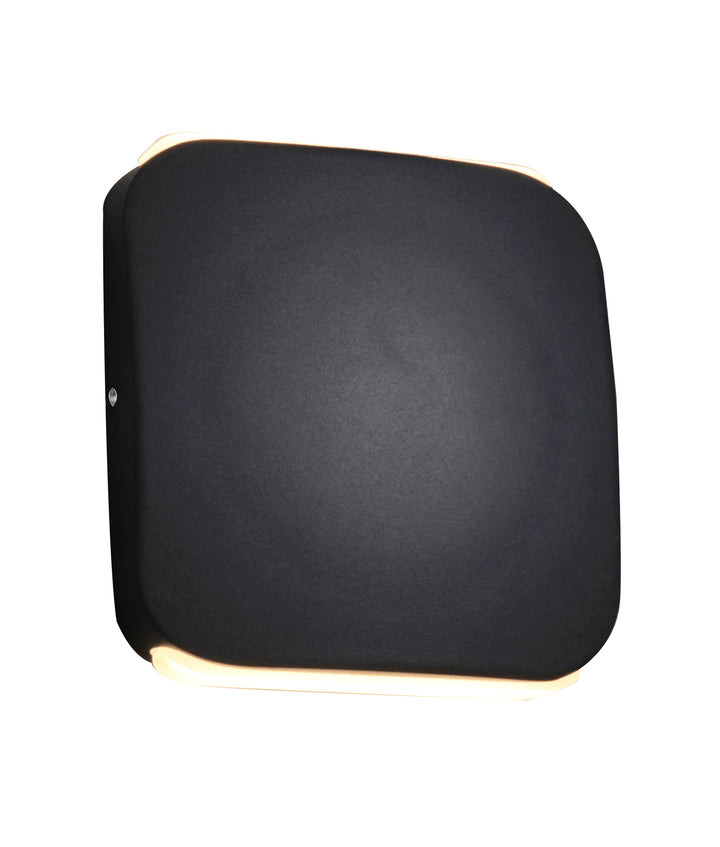

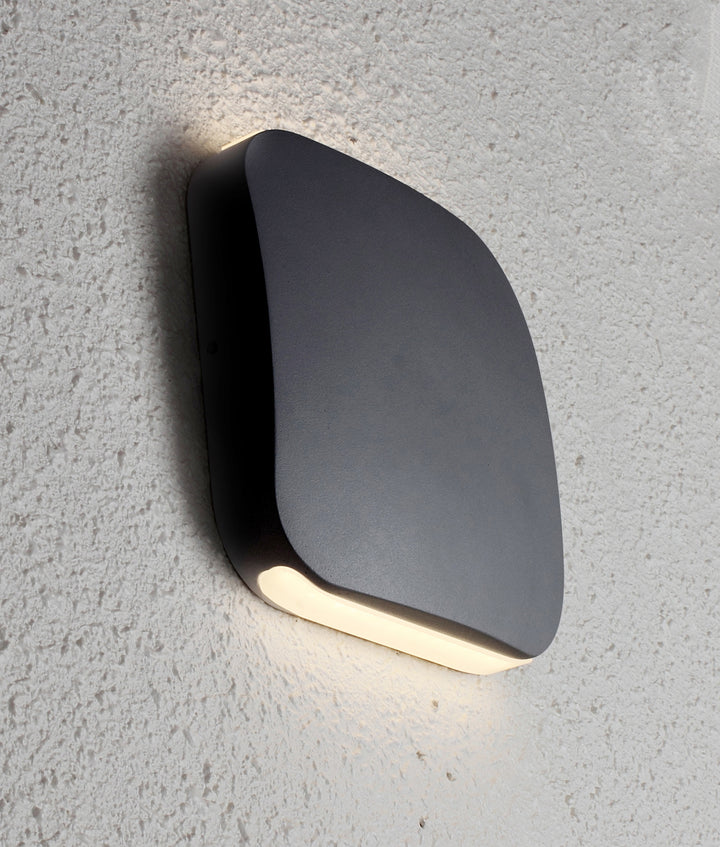

- Exterior surface mounted up/down LED wall light
- Input voltage range: 100-240V AC 50/60Hz
- Output voltage range: 5.5-30V
- Nominal current: 350mA

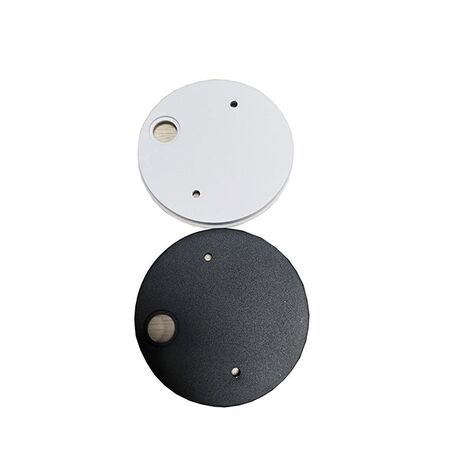

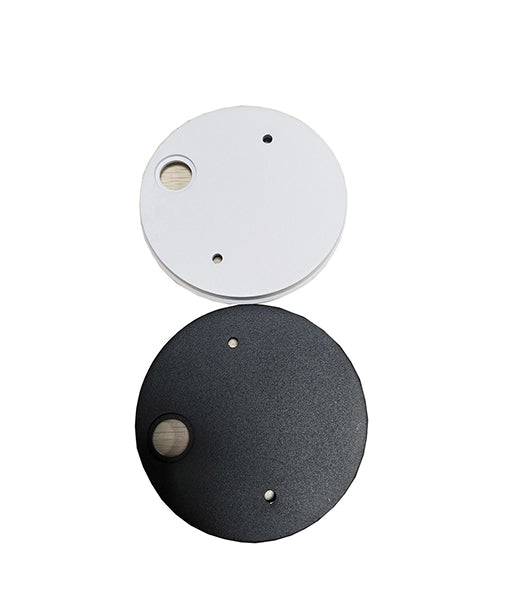

- Housing and bracket made of aluminium
- 32pcs SMD2835 LED chips
- Power factor ≥0.5
- Ambient temperature range: -20 to 45°C
- Not suitable for dimming
- Suitable for 2-way switching
- IP54 rated for dust and water resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Exterior lighting for residential homes
- Outdoor commercial building facades
- Pathway and garden wall illumination
- Suitable for use with PIR and microwave sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long lifespan reduces waste and replacement frequency.
- Low heat emission contributes to environmental safety.
Warranty Information
2 year replacement warranty.
Available Now
The CLA Lighting VOX Surface Mounted LED Exterior Square Up/Down Wall Light IP54 is available for immediate purchase, ideal for enhancing outdoor residential and commercial lighting.
