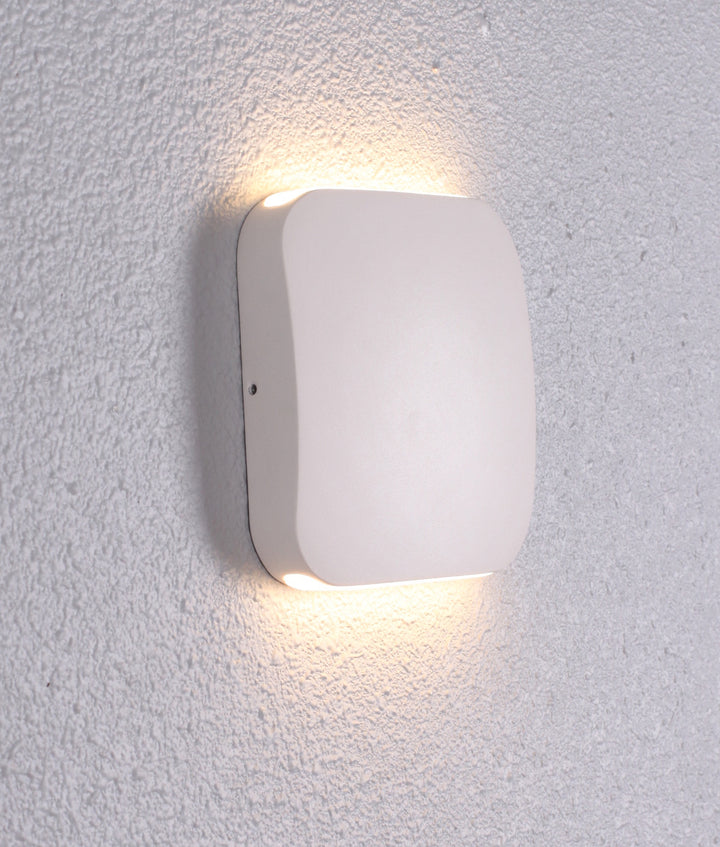

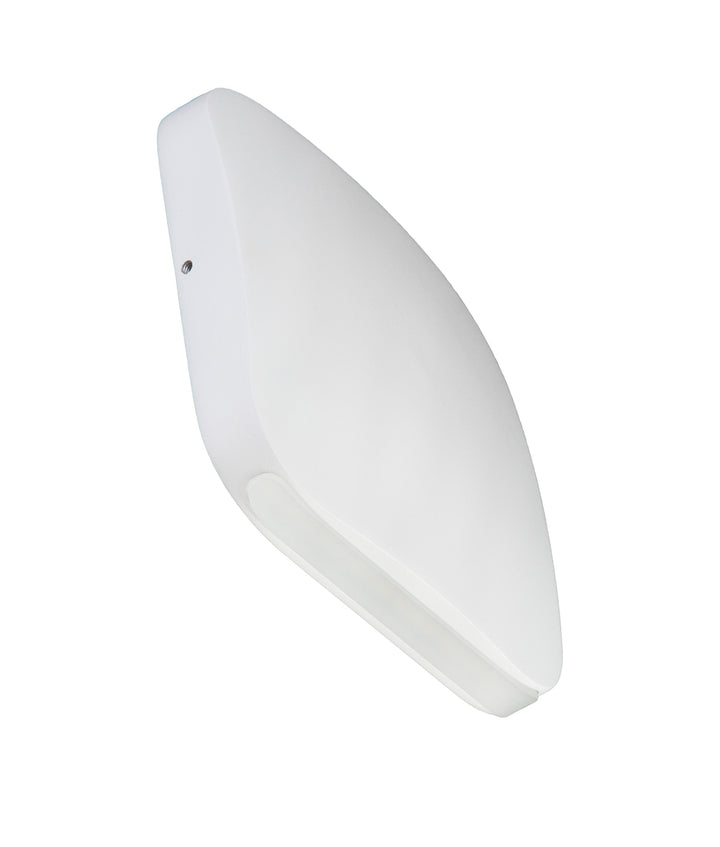

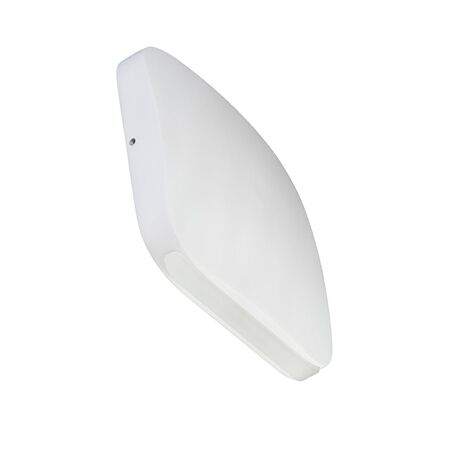

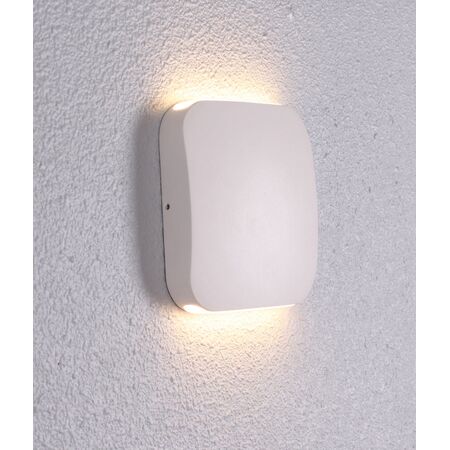

Surface Mounted LED Exterior Square Up/Down Wall Lights | IP54 Rated | 808lm Output | 3000K Warm White | by CLA Lighting
Surface Mounted LED Exterior Square Up/Down Wall Lights are perfect for enhancing outdoor spaces with their IP54 rating and 808 lumens output. Designed for both residential and commercial applications, these lights provide warm white illumination at 3000K, ensuring safety and visibility in pathways and gardens. Built with durable aluminum housing, they are suitable for 2-way switching and sensor integration, making them a versatile choice for any exterior lighting project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Wattage: 9W
- Input Voltage: 200-250V AC
- Colour Temperature: 3000K (Warm White)
- Lumens Output: 808lm
- Beam Angle: 120 degrees
- Power Factor: ≥0.5
- CRI: 80
- LED Chips: 32pcs SMD2835
- Ambient Temperature Range: -20 to 45°C
- IP Rating: IP54
- Not suitable for dimming
- Suitable for 2-way switching and sensor integration
- Dimensions (H x L x W): 130mm x 130mm x 130mm
- Weight: 0.75 kg
Key Features
- Exterior surface mounted up/down LED wall lights
- Input voltage range: 100-240V AC 50/60Hz
- Output voltage range: 5.5-30V
- Nominal current: 350mA
- Housing and bracket made of aluminium
- 32pcs SMD2835 LED chips
- Power factor ≥0.5
- Ambient temperature range: -20 to 45°C
- Not suitable for dimming
- Suitable for 2-way switching
- IP54 rated for dust and water resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Exterior lighting for residential homes
- Outdoor wall lighting for commercial buildings
- Pathway and garden illumination
- Suitable for use with PIR and microwave sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long lifespan reduces waste and replacement frequency.
- Low heat emission contributes to reduced environmental impact.
Warranty Information
2 year replacement warranty.
Available Now
The CLA Lighting VOX Surface Mounted LED Exterior Square Up/Down Wall Light IP54 is available for immediate purchase, ideal for residential and commercial exterior lighting applications.
